Matrix E5x-02

47

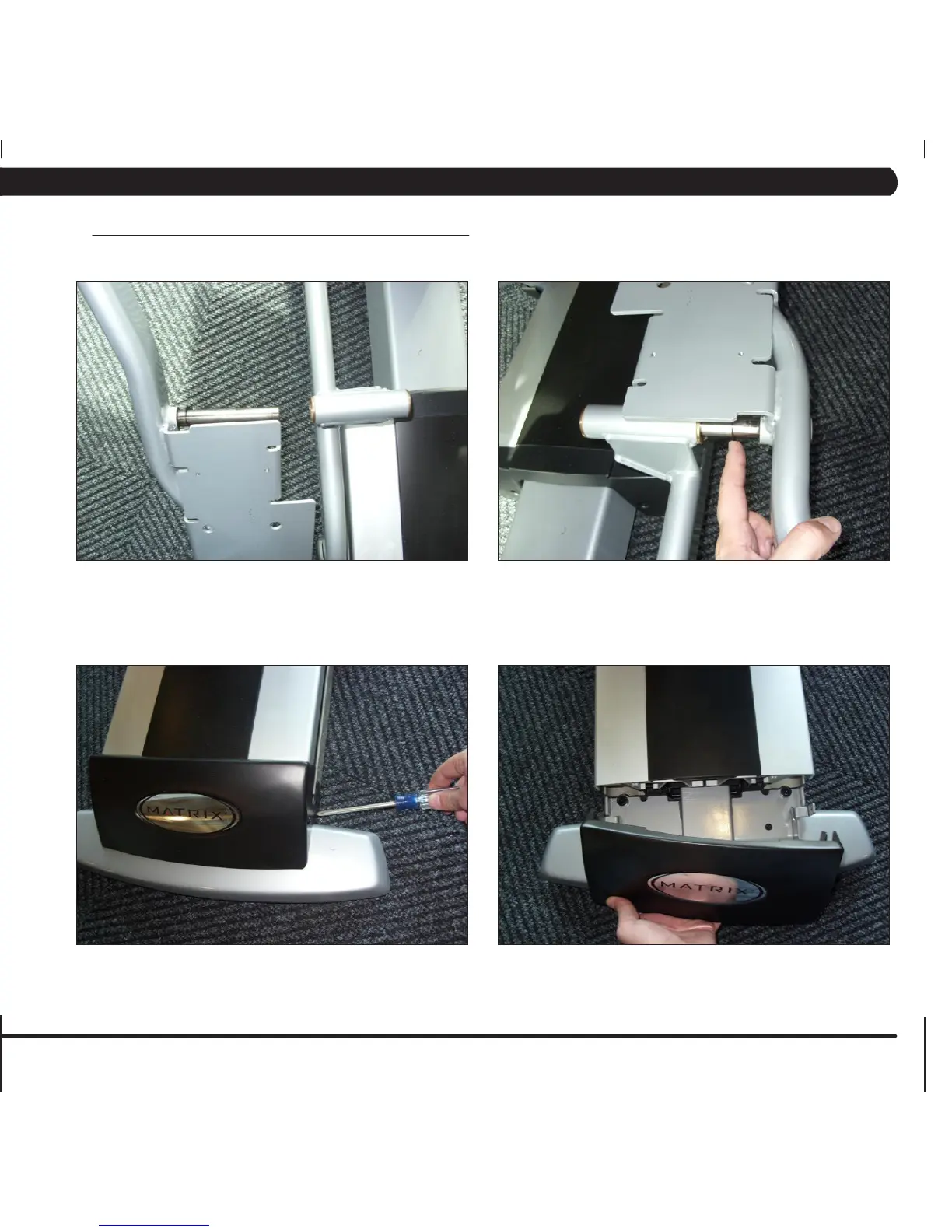

4) Slide the pedal arm shaft out of the crank arm housing (Figure E) noting the order of the washers on the pedal arm shaft (Figure F).
5) Remove the 2 screws on each side holding on the rear end cap and remove it (Figure G & H).
FIGURE E FIGURE F
FIGURE G FIGURE H
8.18 CRANK ARM REPLACEMENT - CONTINUED
CHAPTER 8: PART REPLACEMENT GUIDE
