Matrix E5x-02 User Manual

48
8.18 CRANK ARM REPLACEMENT - CONTINUED

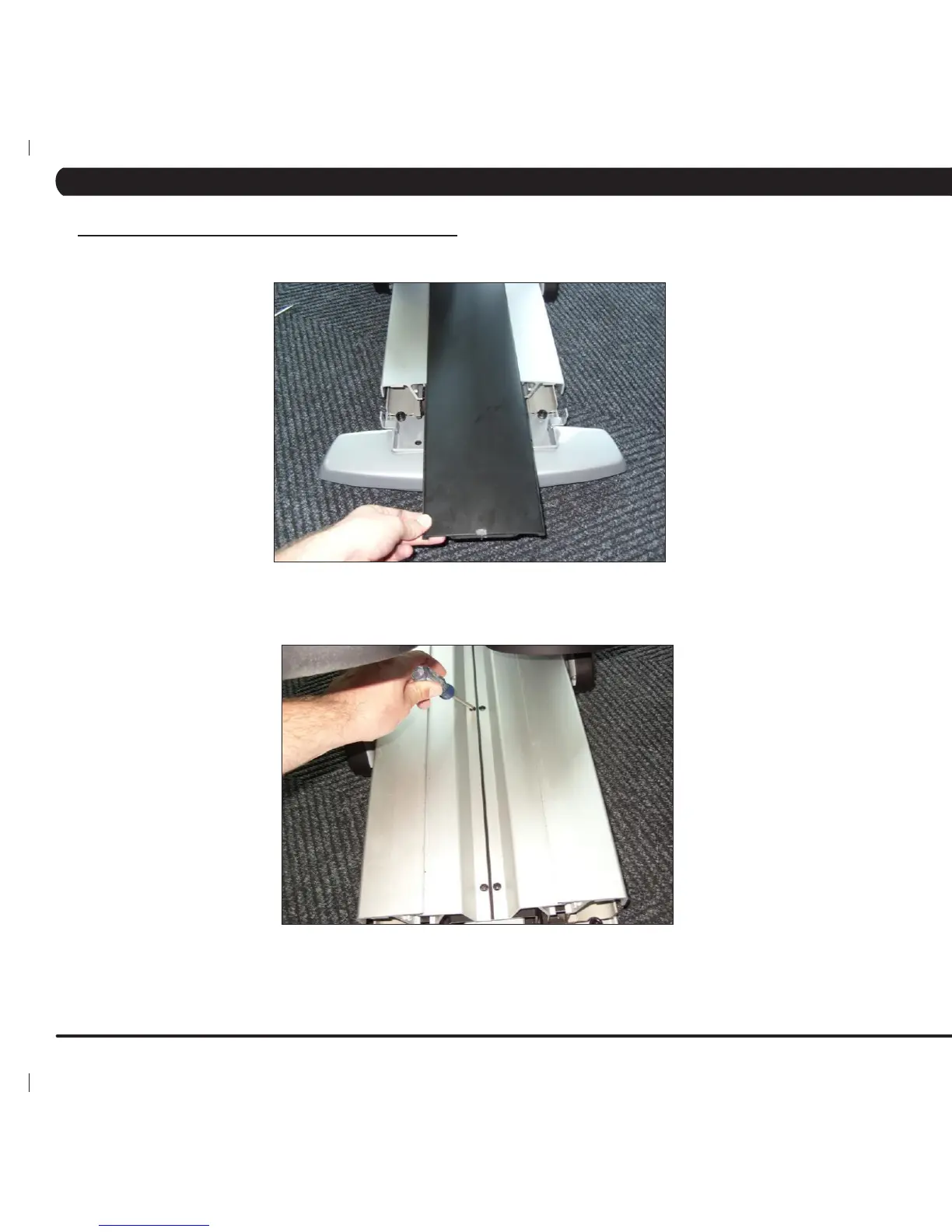

FIGURE I
FIGURE J
6) Remove the middle plastic cover from between the pedals by pulling it towards the rear of the unit (Figure I).
7) Remove the 3 screws holding the top roller track in place (Figure J).
8) Once the top track is removed, the crank arm can be removed from the unit.
9) Reverse Steps 1-8 to install a new crank arm.
10) Test the Elliptical Trainer for function as outlined in Section 8.21.
CHAPTER 8: PART REPLACEMENT GUIDE
