Matrix E5x-02 User Manual

54

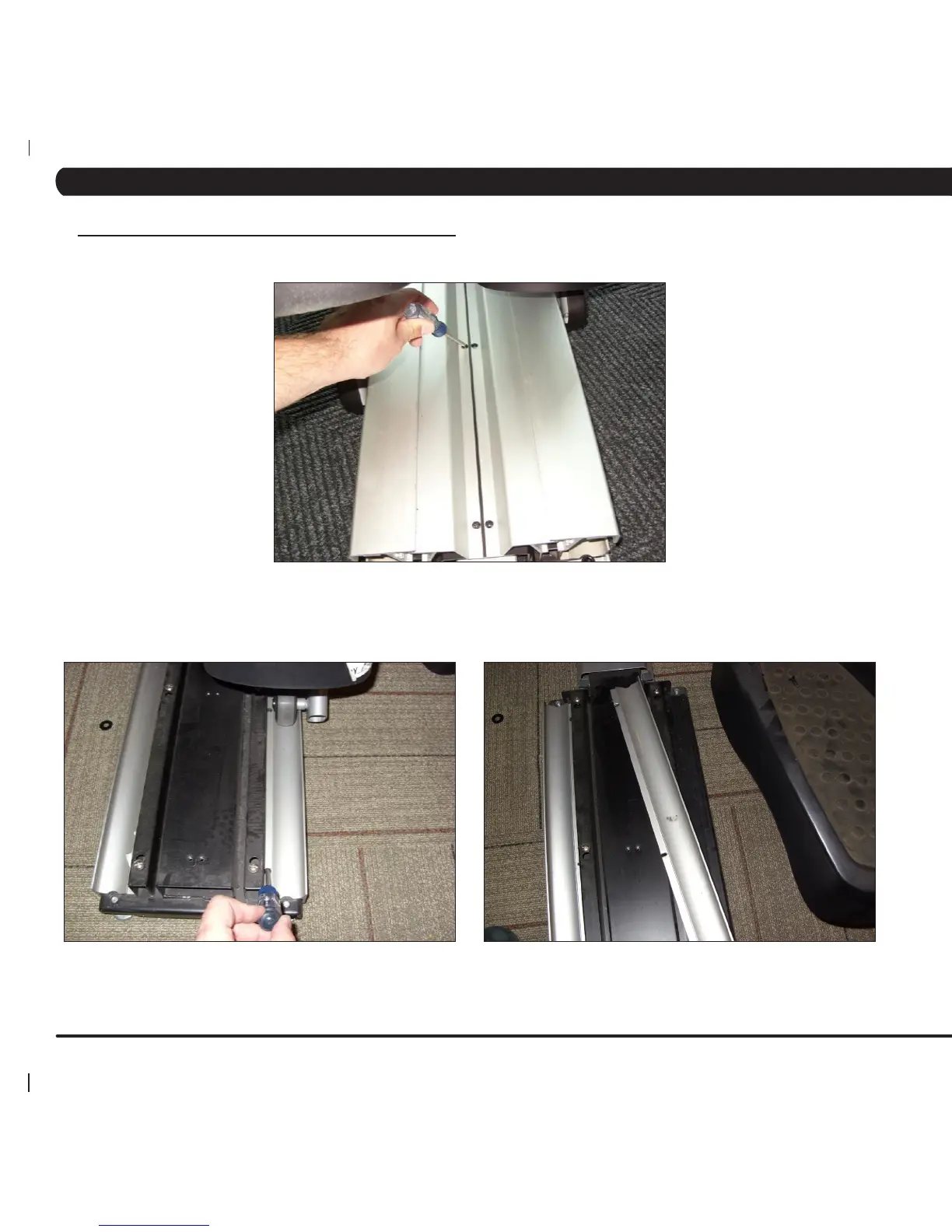

FIGURE H
FIGURE I FIGURE J
8.20 ROLLER TRACK REPLACEMENT - CONTINUED
5) Remove the 3 screws holding the top roller track in place (Figure H).
6) Move the crank arm to the side off of the roller track.
7) Remove the 3 screws holding the bottom roller track to the frame (Figure I) and remove the roller track (Figure J).
8) Reverse Steps 1-7 to install a new roller.
9) Test the Elliptical Trainer for function as outlined in Section 8.21.
CHAPTER 8: PART REPLACEMENT GUIDE
