Hand thread M10 bolts and leave loose
***Note: Pivot Block is symmetrical***
PART 1: USER FRAME ASSEMBLY

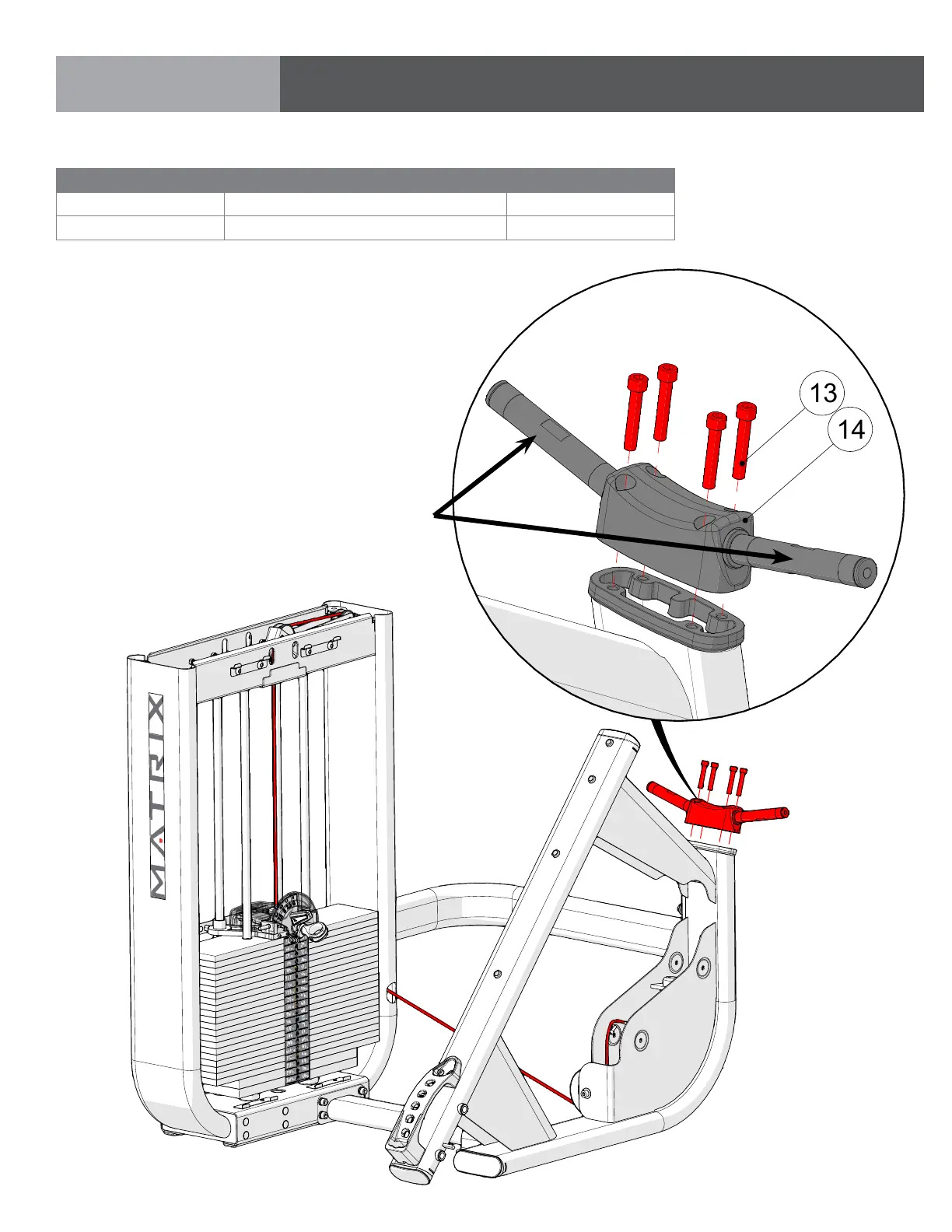

STEP 4 | PIVOT BLOCK ASSEMBLY INSTRUCTIONS & NOTES
ID DESCRIPTION QUANITY
13 M10 X 55L SHC 4
14 Pivot Block Assembly 1
ASSEMBLY
Axles must be red Loctited (Loctite 272)
andtorquedto:180N-m/133ft-lbs.
