Matrix G7-S23 - Part 3 Seat Assembly; Medium Pivot Cap

17

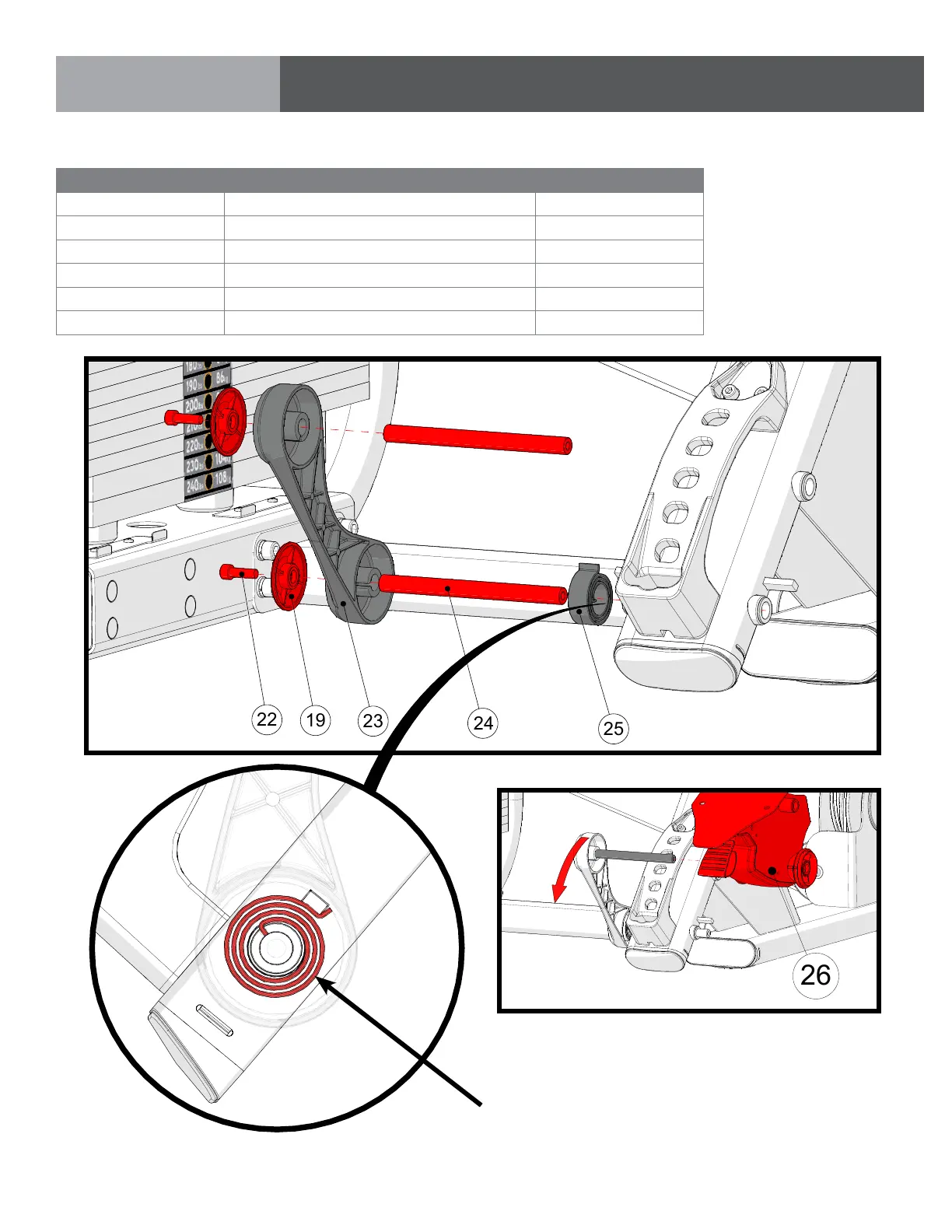

STEP 1 | SEAT LINK ASSEMBLY INSTRUCTIONS & NOTES
ID DESCRIPTION QUANITY
19 Medium Pivot Cap 2
23 M8 X 25L SHC 2
24 Seat Link 1
25 Axle 2
26 Spring 1
27 Seat 1
ASSEMBLY
PART 3: SEAT ASSEMBLY
Tightento39N-m/29ft-
lbs.
Outer tab of spring must be secured behind
frame reaction bar
Ensure bottom links are assembled correctly
by testing spring tension
22
19
23
24
25
26
