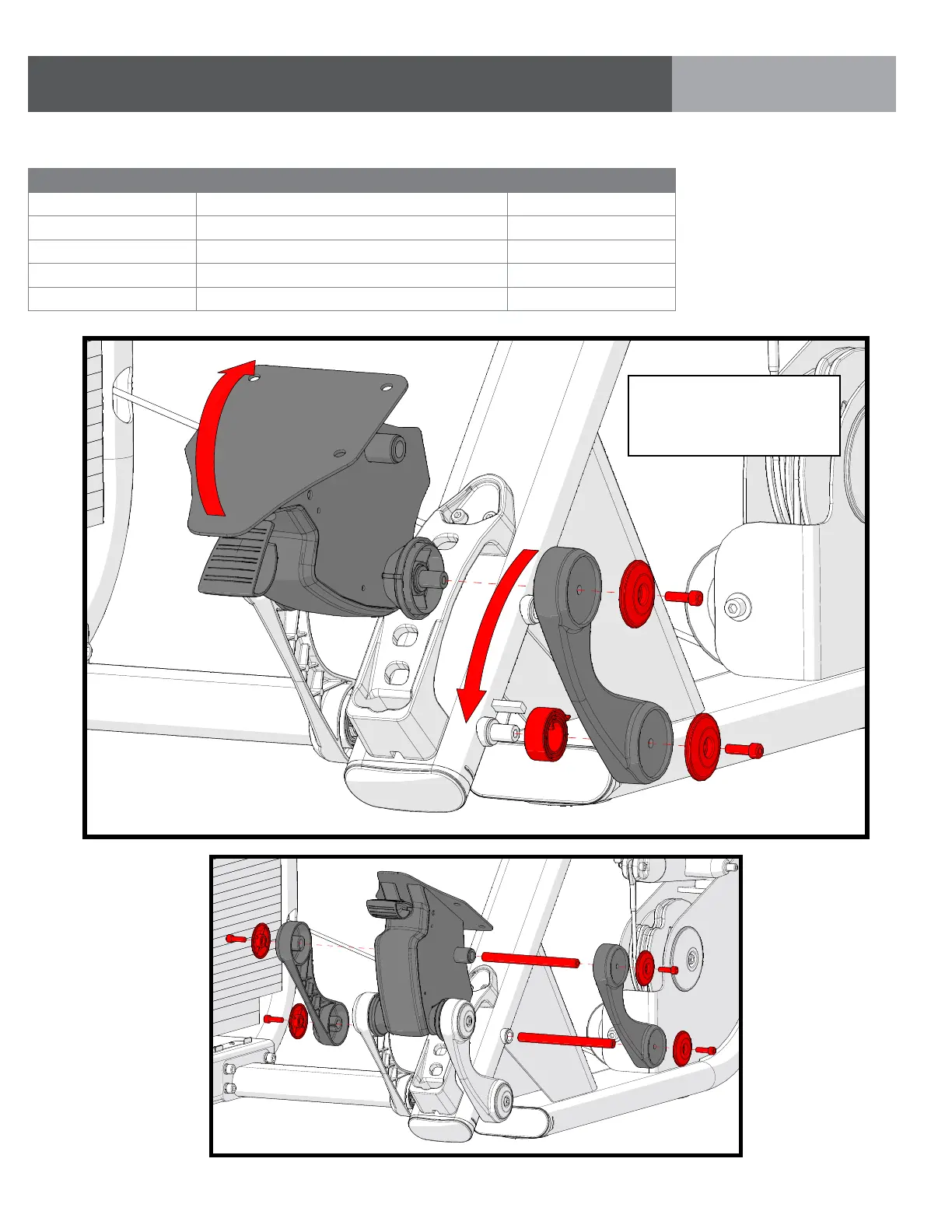

STEP 2 | SEAT ASSEMBLY INSTRUCTIONS & NOTES
ID DESCRIPTION QUANITY
19 Medium Pivot Cap 6
23 M8 X 25L SHC 6
24 Seat Link 3
25 Axle 2
26 Spring 1
ASSEMBLY
PART 3: SEAT ASSEMBLY
Tightento39N-m/29ft-lbs.
Rotate seat to
engage pull pin
Assemble upper
axles, links and
pivot caps
