Matrix G7-S23 - Part 2 Cam;Cable Assembly

14
1
3
16
15
17

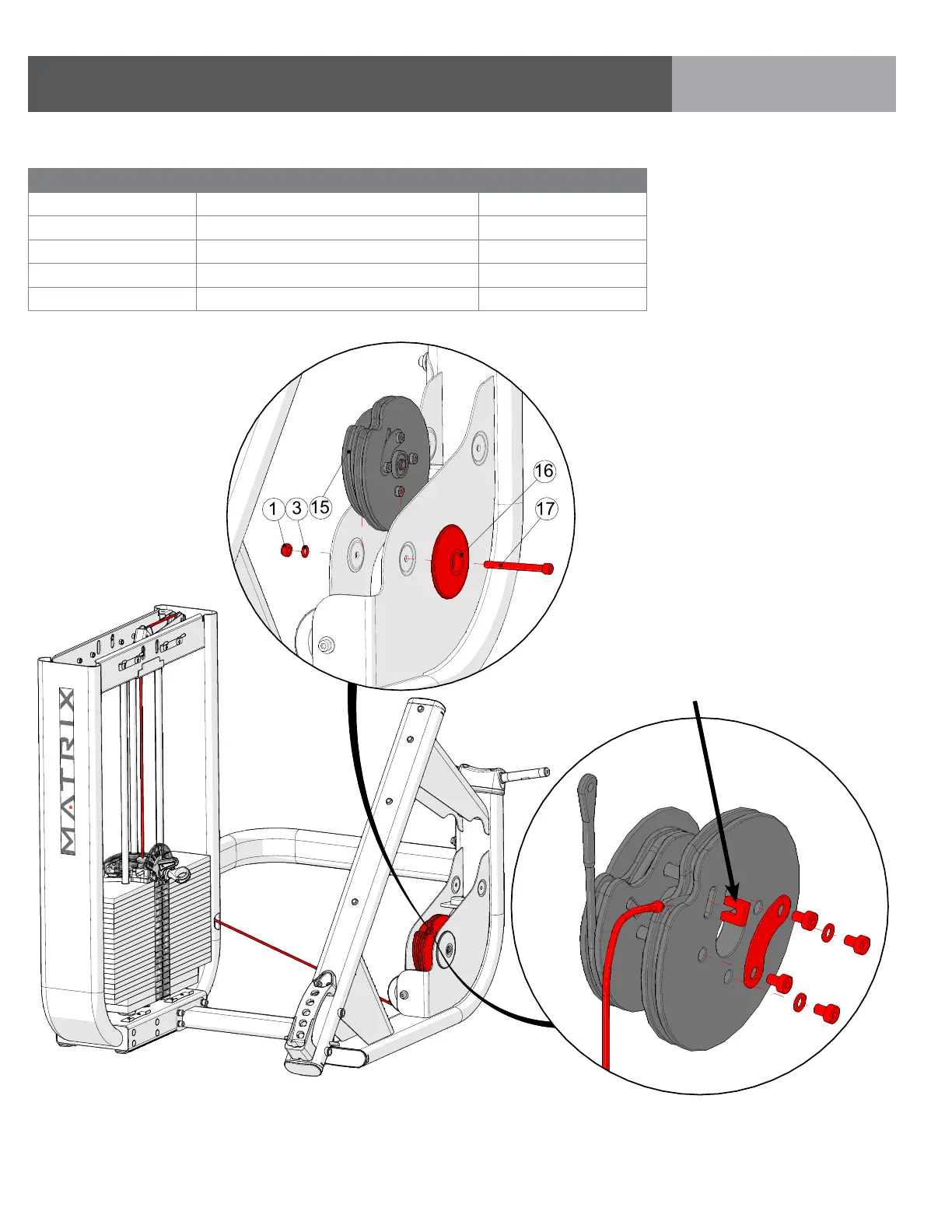

STEP 1 | CAM & CABLE ASSEMBLY INSTRUCTIONS & NOTES
ID DESCRIPTION QUANITY
1 M10 Nylock Nut 1
3 M10 Flat Washer 1
15 CAM 1
16 Large Pivot Cap 1
17 M10 X 105L SHC 1
ASSEMBLY
PART 2: CAM/CABLE ASSEMBLY
Tightento77N-m/57ft-lbs.
Separate CAM to assemble
weight stack cable as shown.
Capture cable with forked clip and
orient as shown. Tighten to 16
N-m/142in-lbs.
