Matrix G7-S23 - Part 4 Arm Assembly

19
ASSEMBLY

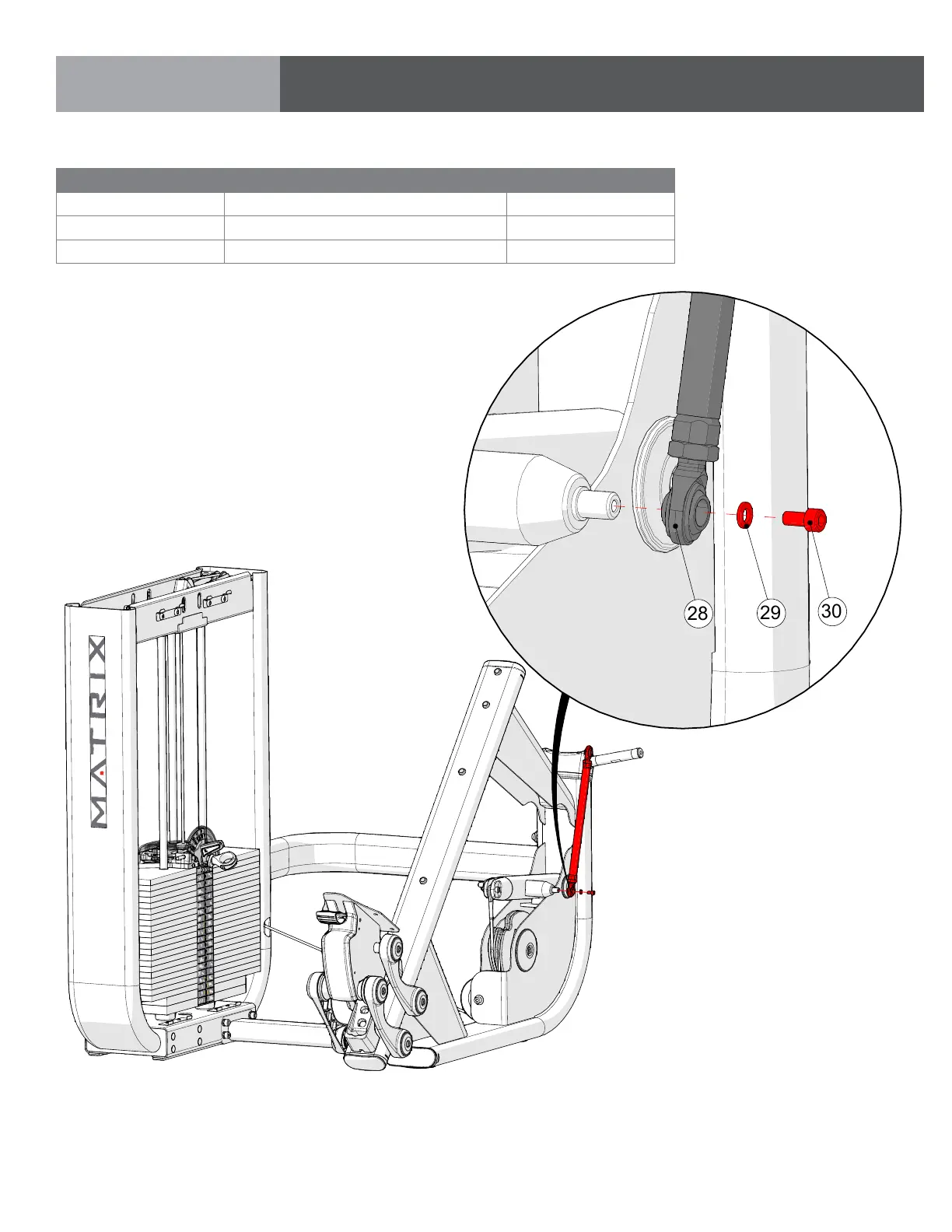

STEP 1 | TIE ROD TO SWINGARM ASSEMBLY INSTRUCTIONS & NOTES
PART 4: ARM ASSEMBLY
28
29
30
Torqueto16N-m/142in-lbs.
ID DESCRIPTION QUANITY
28 Tie Rod (Right Side Not Shown) 2
29 M6 Flat Washer (Right Side Not Shown) 2
30 M6 X 12L SHC (Right Side Not Shown) 2
