Matrix G7-S23 - Page 20

20

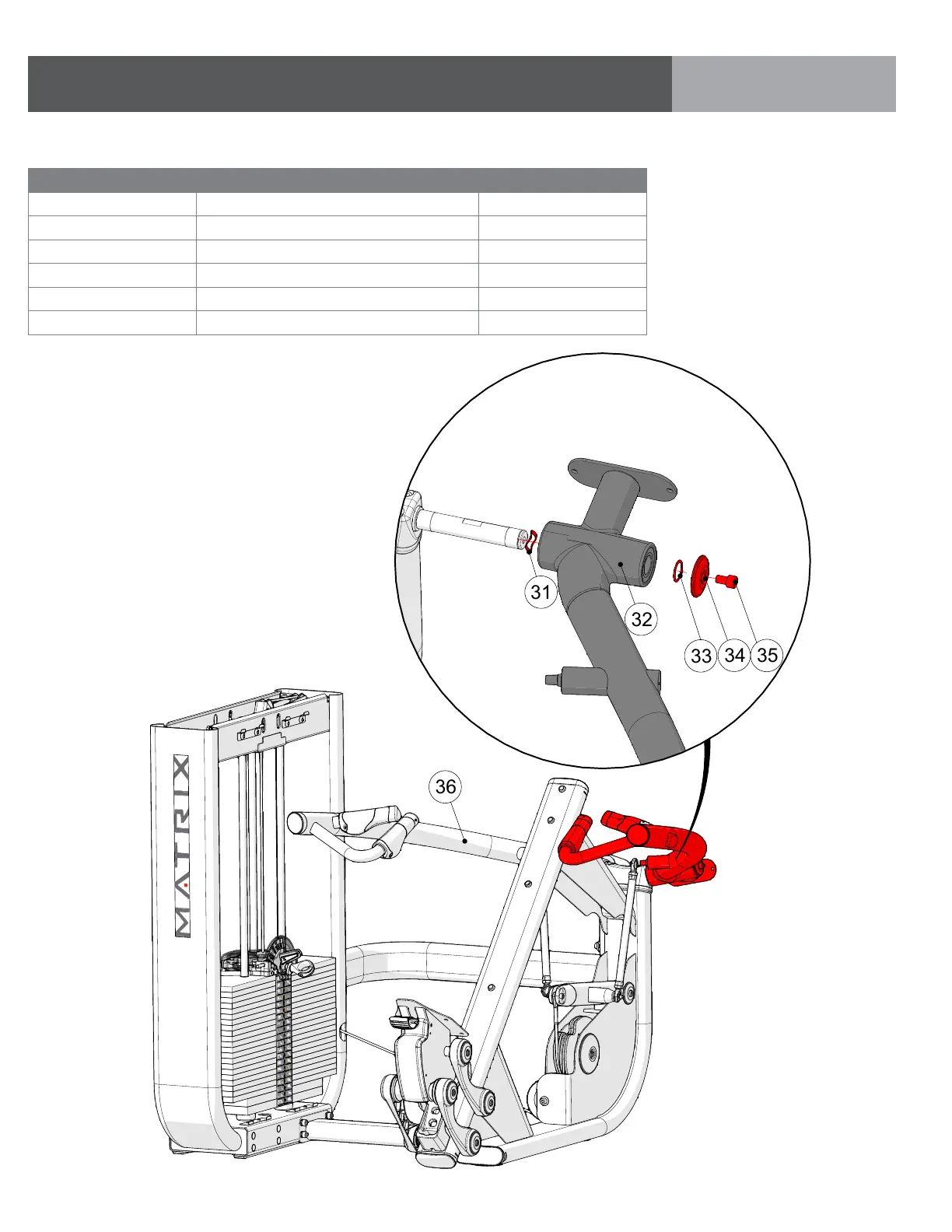

STEP 2 | LEFT AND RIGHT* ARM ASSEMBLY INSTRUCTIONS & NOTES
ASSEMBLY
PART 4: ARM ASSEMBLY
32
33
31
34
35
36
ID DESCRIPTION QUANITY
31 Wave (Spring) Washer 2
32 Left Arm 1
33 Snap Ring 2
34 Small Pivot Cap 2
35 M10 X15L SHC 2
36 Right Arm 1
*Only left arm assembly is shown
Apply blue Loctite 242 and tighten to 77
N-m/57ft-lbs.
