Before fully tightening the pivot block, ensure that the arms are symmetrical about the centerline
of the machine. The left and right hand grips should be at the same height to each other and be
equidistanttothecenterlineoftheuser.
ASSEMBLY

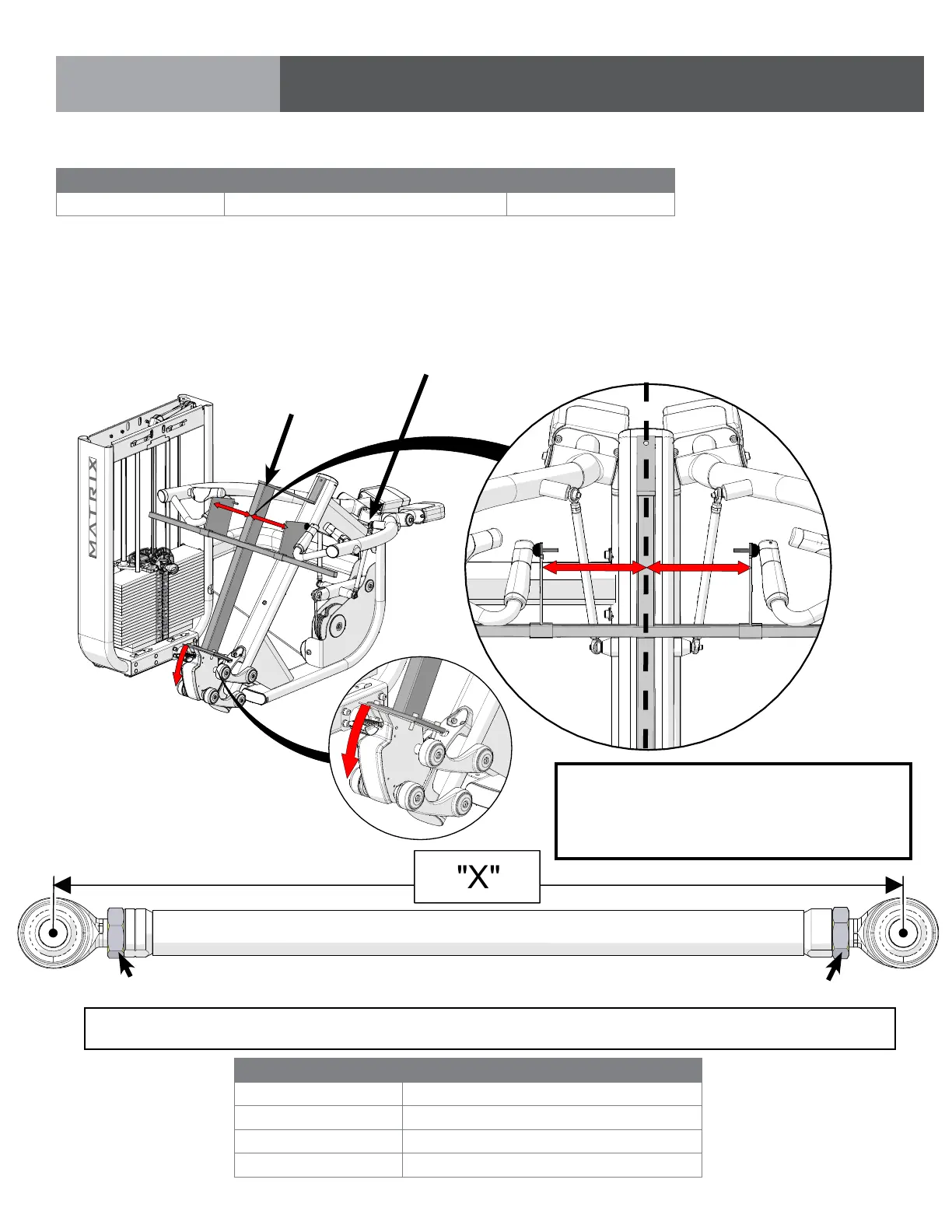

STEP 5 | ARM POSITIONING INSTRUCTIONS & NOTES
PART 4: ARM ASSEMBLY
ID DESCRIPTION QUANITY
Optional Jig ArmLeveling&Positioningxture 1
Tie Rod lengths must be adjusted according to machine.
To adjust length: loosen jam nuts, turn center rod, tighten jam nuts
Machine Tie Rod Length (“X”)
Chest Press 722.5 mm (28.4”)
Shoulder Press 360.0 mm (14.2”)
Lat Pulldown 555.0 mm (21.9”)
Seated Row 350.0 mm (13.8”)
"X"
Jam Nut
Jam Nut
Optional Jig
Tightenpivotblockto77N-m/57ft-lbs.
Tighten four bolts of pivot block, and then
back out one bolt to apply red Loctite 272,
replacebolttopropertorque.Repeat
steps for three remaining bollts
