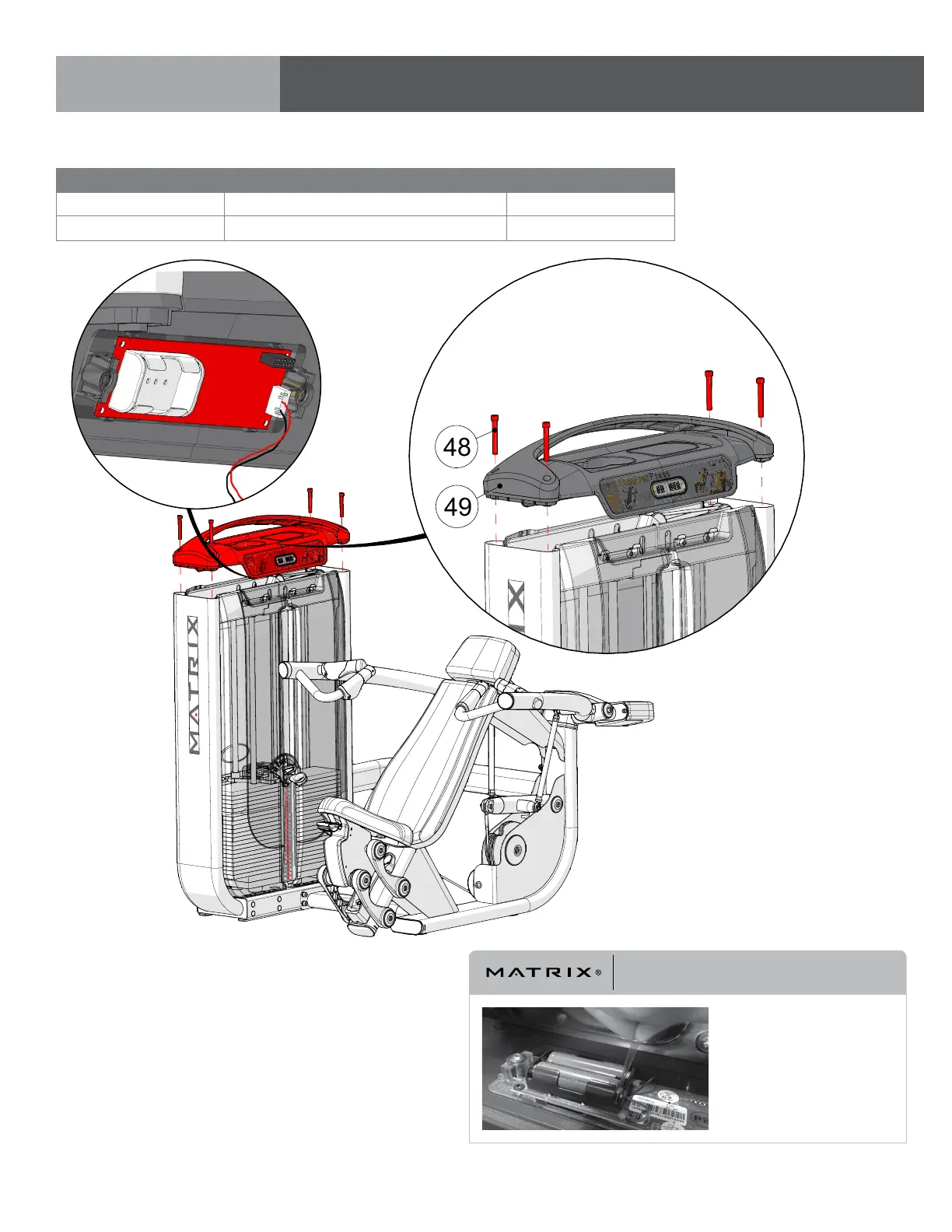

STEP 2 | TOP CAP ASSEMBLY INSTRUCTIONS & NOTES
ID DESCRIPTION QUANITY
48 M8 X 60L SHC 4
49 Top Cap 1
ASSEMBLY
PART 6: PLASTICS ASSEMBLY
Install the top cap and connect rep
counter plug as shown.
Torqueto17N-m/147in-lbs.
Position top cap so Rep Counter faces
the user.
49
48
IMPORTANT NOTICE
PLEASE NOTE:
Be sure to remove the insulating
sheet when installing the
Rep Counter.
