Matrix r7xi-02 User Manual

111
9.23 DRIVE AXLE SET REPLACEMENT - CONTINUED
CHAPTER 9: PART REPLACEMENT GUIDE

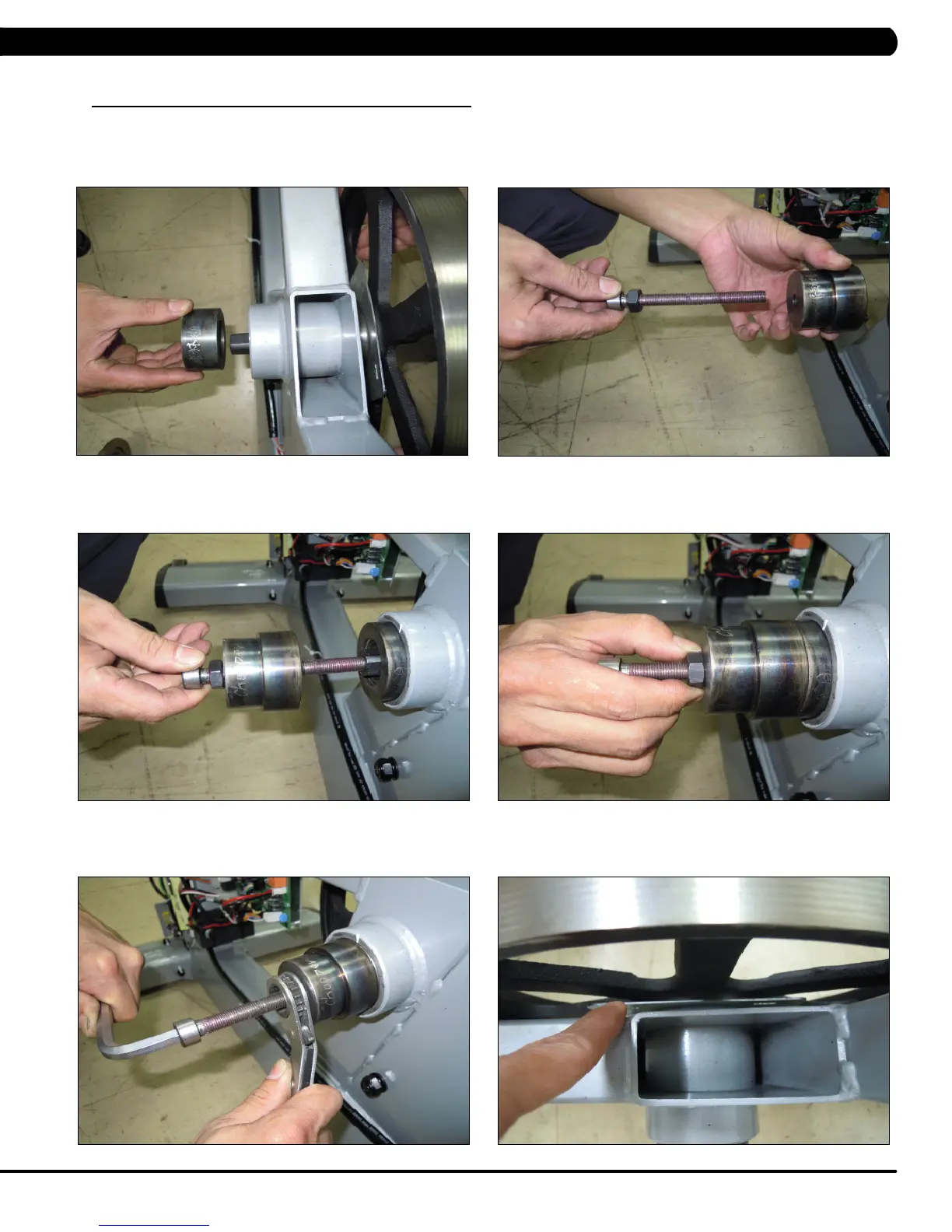

9) Slide the drive axle assembly into the frame from the right side. Install the bearing cap portion of the tool into the left side of the frame (Figure
G).
10) Mount the other tool from Figure F behind the bearing cap portion of the tool. Use the M10 x 100L x 1.25P screw with a nut to attach the tool
to the drive axle (Figure H).
11) Turn the screw until it is close into the drive axle (Figure I).
12) Then turn the nut until it is close to the cup portion of the tool (Figure J).
13) Use a wrench to hold the screw, then turn the nut to pull the drive axle into the frame (Figure K).
14) Turn the nut until the iron plate is close to the frame on the right side (Figure L).
FIGURE HFIGURE G
FIGURE I FIGURE J
FIGURE LFIGURE K
