Matrix r7xi-02 User Manual

112
9.23 DRIVE AXLE SET REPLACEMENT - CONTINUED

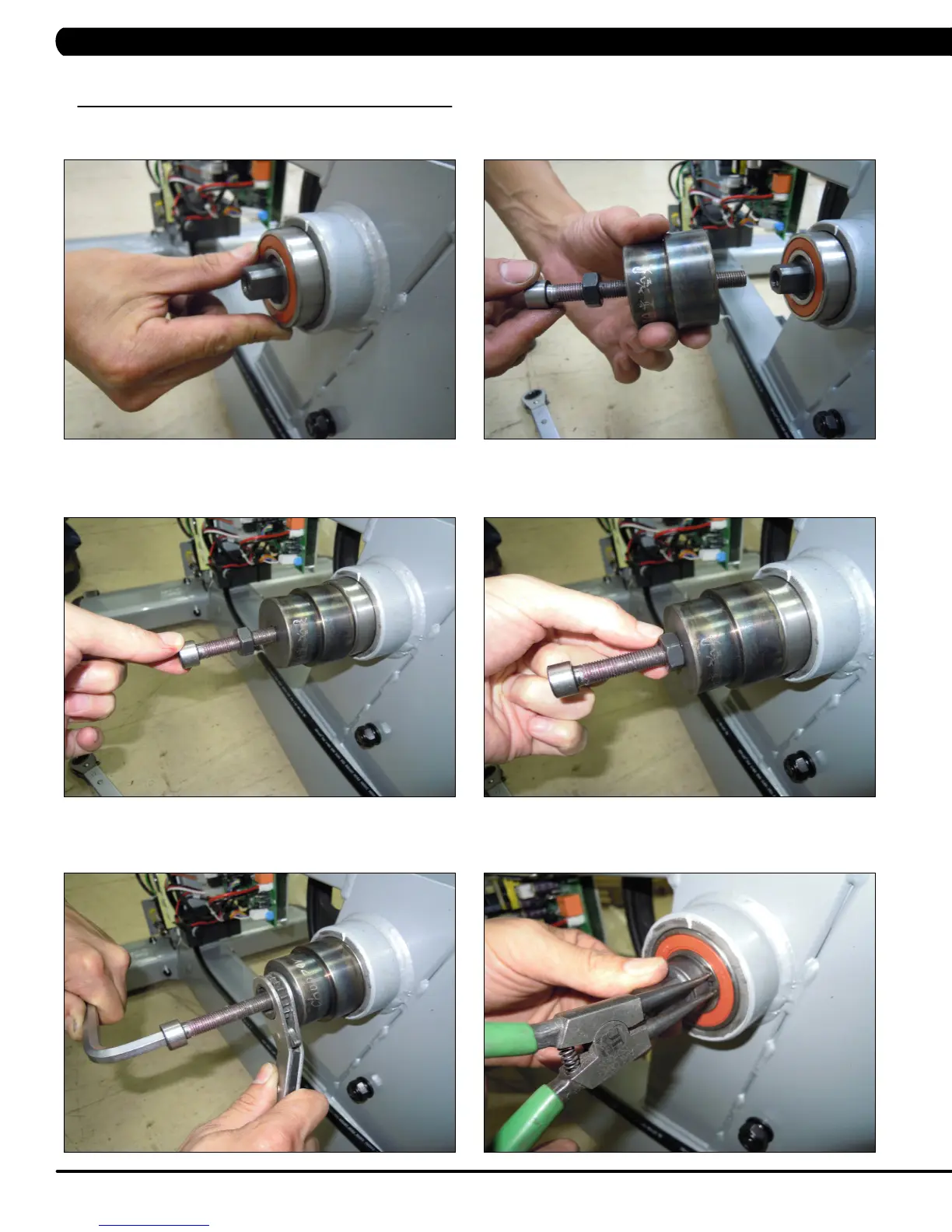

15) Remove the tools, then insert the bearing into the hole in the frame on the left side (Figure M).
16) Again use the M10 x 100L x 1.25P screw with a nut to attach the tool to the drive axle (Figure N).
17) Turn the screw until it is close into the drive axle (Figure O).
18) Then turn the nut until it is close to the cup portion of the tool (Figure P).
19) Use a wrench to hold the screw, then turn the nut to push the bearing into the hole in the frame (Figure Q).
20) Insert the retainer clip to hold the bearing in the frame (Figure R).
FIGURE M FIGURE N
FIGURE PFIGURE O
FIGURE RFIGURE Q
CHAPTER 9: PART REPLACEMENT GUIDE
