144
10.7 NETPULSE &
AM SETTING UP SOP
2.

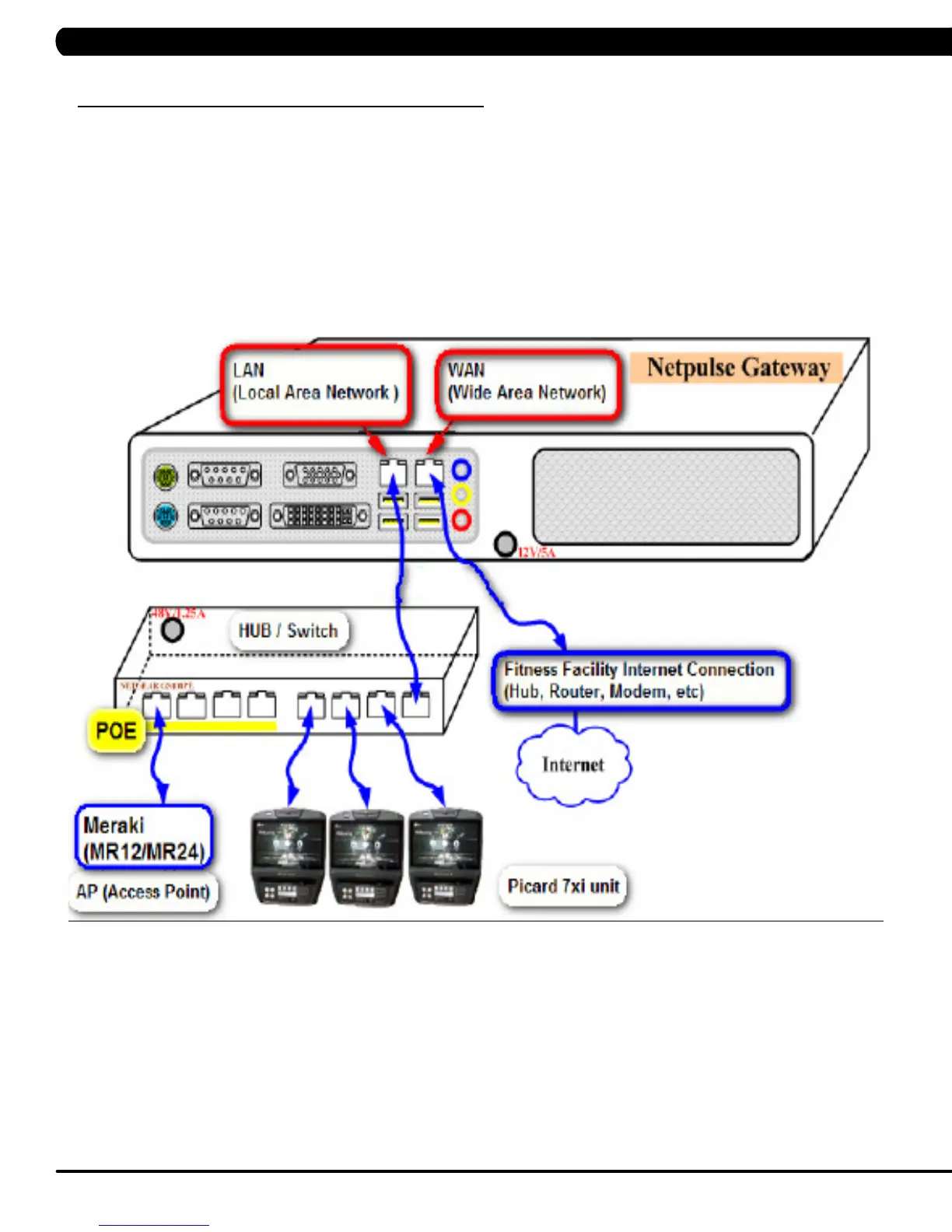

Install gateway server and switch
a. Connect the modem to the Gateway with a patch cable.
b. Connect the Gateway to the Switch with a patch cable.
c. Connect the modem, switch, and Gateway to a power source
d. Label the jacks on the patch panel and the corresponding jacks on the fitness floor as well.
HAR
D WI
RE
D DA
T
A GA
T
EWA
Y SE
TUP FOR 7X
I
CHAPTER 10: BIKE SPECIFICA
TIONS
AND
ASSEMBL
Y
GUIDE
146
148
Table of Contents
Default Chapter
2
Table of Contents
2
Chapter 1: Serial Number Location
4
Chapter 2: Important Safety Instructions
6
Read and Save These Instructions
6
Electrical Requirements
7
Chapter 3: Preventative Maintenance
8
Recommended Cleaning Tips
8
Check for Damaged Parts
8
Care and Maintenance Instructions
9
Touch Screen Care & Cleaning
10
Chapter 4: Console Overlay and Workout Description
11
Console Description
11
Workout Setup Steps
12
Chapter 5: Manager Mode
13
Using Manager Mode
13
Manager Mode - General
14
Manager Mode - Workout
18
Manager Mode - Setup Defaults
20
Manager Mode - Asset Management
22
Manager Mode - Weather
22
Manager Mode TV
23
Manager Mode - Applications
24
Manager Mode - Hardware
25
Manager Mode - Service
26
Chapter 6: Engineering Mode
27
Using Engineering Mode
27
Engineering Mode - General
28
Engineering Mode - Workout
32
Engineering Mode - Setup Defaults
34
Engineering Mode - Network
35
Engineering Mode - Asset Management
36
Engineering Mode - Weather
37
Engineering Mode - TV
37
Engineering Mode - Applications
39
Engineering Mode - Hardware
40
Engineering Mode - Service
41
Engineering Mode - Errors
41
Chapter 7: Service Mode
42
Using Service Mode
42
Service Mode - General
43
Service Mode - Workout
47
Service Mode - Setup Defaults
49
Service Mode - Update
50
Service Mode - Network
51
Service Mode - Asset Management
52
Service Mode - Weather
52
Service Mode TV
53
Service Mode - Applications
54
Service Mode - Hardware
55
Service Mode - Virtual Active
57
Service Mode - Management
57
Service Mode - Service
58
Service Mode - Errors
58
Service Mode - Netpulse
59
Matrix Fitness 7Xi Series Feature Access Codes
60
Chapter 8: Troubleshooting
61
Electrical Diagram
61
LCB LED Indicators
65
UCB Wiring Connections
66
Troubleshooting - Error 04A0 / 0440
67
Error Code 04B0
68
Troubleshooting - Error 04B0
68
Troubleshooting - Error 0248
69
Troubleshooting - Error 0247
70
Troubleshooting - Error 02AB
70
Troubleshooting - Error 01AC / 01AF
71
Troubleshooting - Error 01B4
72
Troubleshooting - no Resistance Issues
73
Troubleshooting - Heart Rate Issues
74
TV Troubleshooting - Overview
75
TV Troubleshooting - Picture Fuzzy or Unclear
76
TV Troubleshooting - TV will Not Turn on
77
TV Troubleshooting - Entertainment Keypad Issues
78
Troubleshooting - no Netpulse Network Connectivity
79
Troubleshooting - Unable to Access the Internet
81
Troubleshooting - Black Screen or Initializing TV in the TV APP
83
Troubleshooting - Virtual Active Content Not Found
84
Troubleshooting - Touch Screen User and Register Buttons Unresponsive
85
Troubleshooting - BOOTMGR Error
86
Troubleshooting - Weather Map Won't Load
87
Troubleshooting - the Time Is Incorrect
88
Troubleshooting - Unable to Boot into Matrix Home Screen
88
Chapter 9: Part Replacement Guide
89
Console Replacement
89
Handlebar Replacement
90
Cup Holder Replacement
91
Keypad / Overlay Replacement
92
Seat Pad Replacement
94
Back Pad Replacement
95
HR Grips Replacement
96
Seat Set Replacement
97
Seat Slide Replacement
98
Rear Covers Replacement
100
Guide Rail Set Replacement
101
Pedal Replacement
102
Crank Axle Set Replacement
103
Front Shrouds Replacement
104
Front Covers Replacement
105
Console Mast Removal
106
Lower Control Board Replacement
107
Battery Replacement
108
Drive Belt Replacement
109
Generator Replacement
110
Rear Stabilizer Replacement
111
Front Stabilizer Replacement
112
Drive Axle Set Replacement
113
CF Card Replacement
117
Console Parts Replacement
118
Testing the Bike
120
Chapter 10: Bike Specifications and Assembly Guide
121
R7Xi-02 Bike Specifications
121
Assembly Instructions
122
Adjusting the Pedal Straps and Seat
129
Leveling the Bike
130
TV Programming Instructions
131
Using Update Manager
137
Netpulse & am Setting SOP
141
Chapter 11 : Software Upgrade Guide
160
Software Upgrade Procedure from Website
160
Software Upgrade Procedure from USB
162
