5.1 TenSion conTrol rePlacemenT - conTinUeD

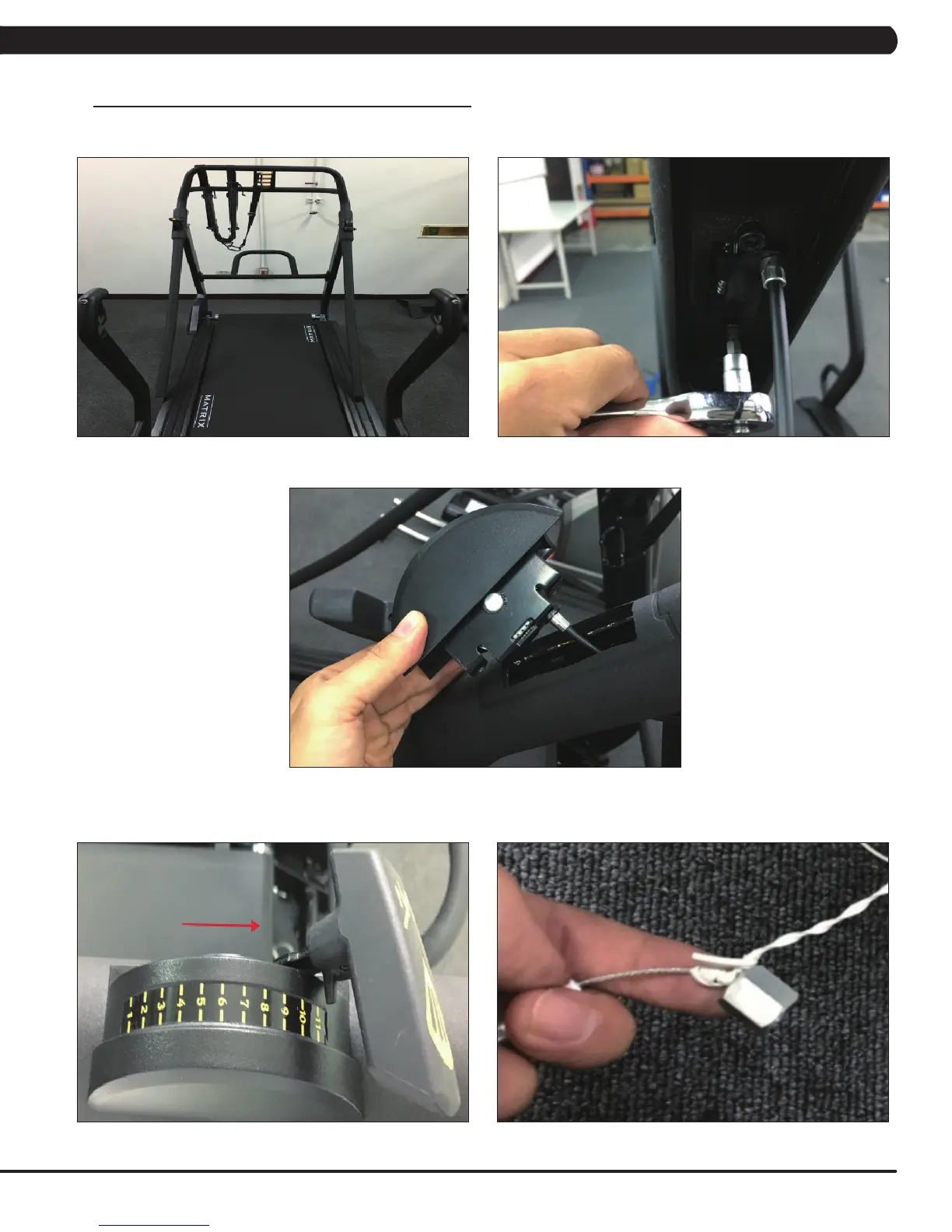

6)Putdownthearmrestset(FigureG).
7)Removethe2screwsholdingtensioncontrolfromarmrestset(FigureH).
8)Removetensioncontrolfromarmrestset(FigureI).
9)Whenyouinstallthenewtensioncontrol,makesurethetensioncontrollevelisatthehighestlevelandtiethewireattensioncontrolwire
end.PleaserefertothefigureJ&K.
fiGUre G
fiGUre H
fiGUre i
fiGUre j
fiGUre k
cHaPTer 5: ParTS rePlacemenT GUiDe

Matrix S-Drive Specifications

General

Transport Wheels	Yes
Running Surface	20" x 60"
Frame	Steel
Console	LCD
Footprint	191 x 85 cm / 75" x 33.5"
Programs	Manual
Stride Length	Adjustable
