Matrix S-Drive User Manual

8

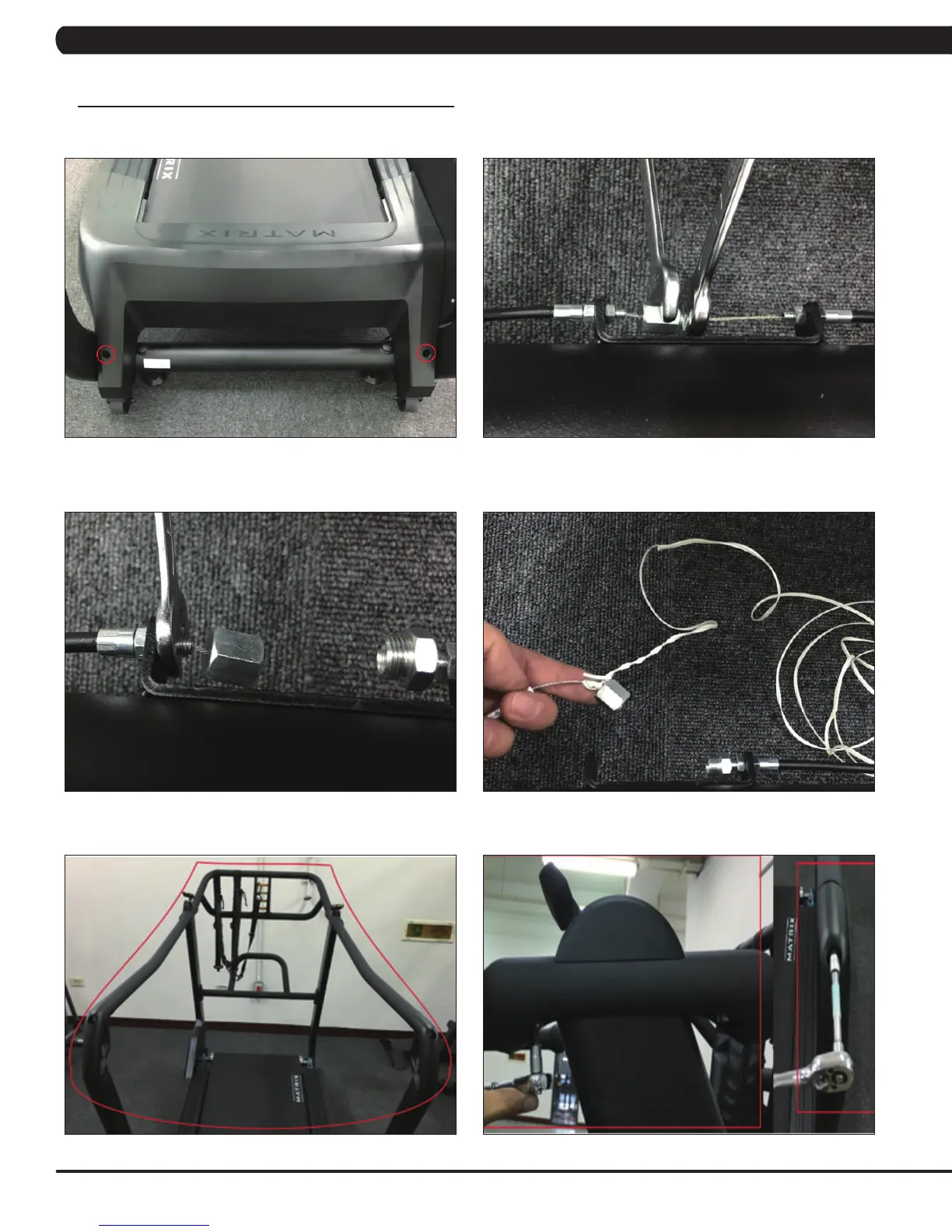

5.1 TenSion conTrol rePlacemenT
1)Removethe2screwsholdingframecover(FigureA).
2)Takeoffthetensioncontrolwire(FigureB).
3)Removethetensioncontrolwirefromframe(FigureC).
4)Tiethewireondamagedtensioncontrolwire.Whenyoupullouttensioncontrolwire,thewirewillbeinsideconsolemast,soitiseasierto
replacenewtensioncontrolwire(FigureD).
5)Removethe6screwsholdingarmrestset(FigureE&F).
fiGUre c
fiGUre D
cHaPTer 5: ParTS rePlacemenT GUiDe
fiGUre a
fiGUre b
fiGUre e
fiGUre f
