66 Matrix SATATYA Devices Manual
Installing HDD in NVRX Variants
NVRX series supports maximum eight Hard disks. The storage capacity of each hard disk is upto 10 Terabytes.
NVR0801X/NVR1601X and NVR1602X/NVR3202X HDD Installation
This section includes the common procedure of installing single Hard Disk in NVR0801X, NVR1601X, NVR1602X
and NVR3202X variants.
Hard Disk Mounting

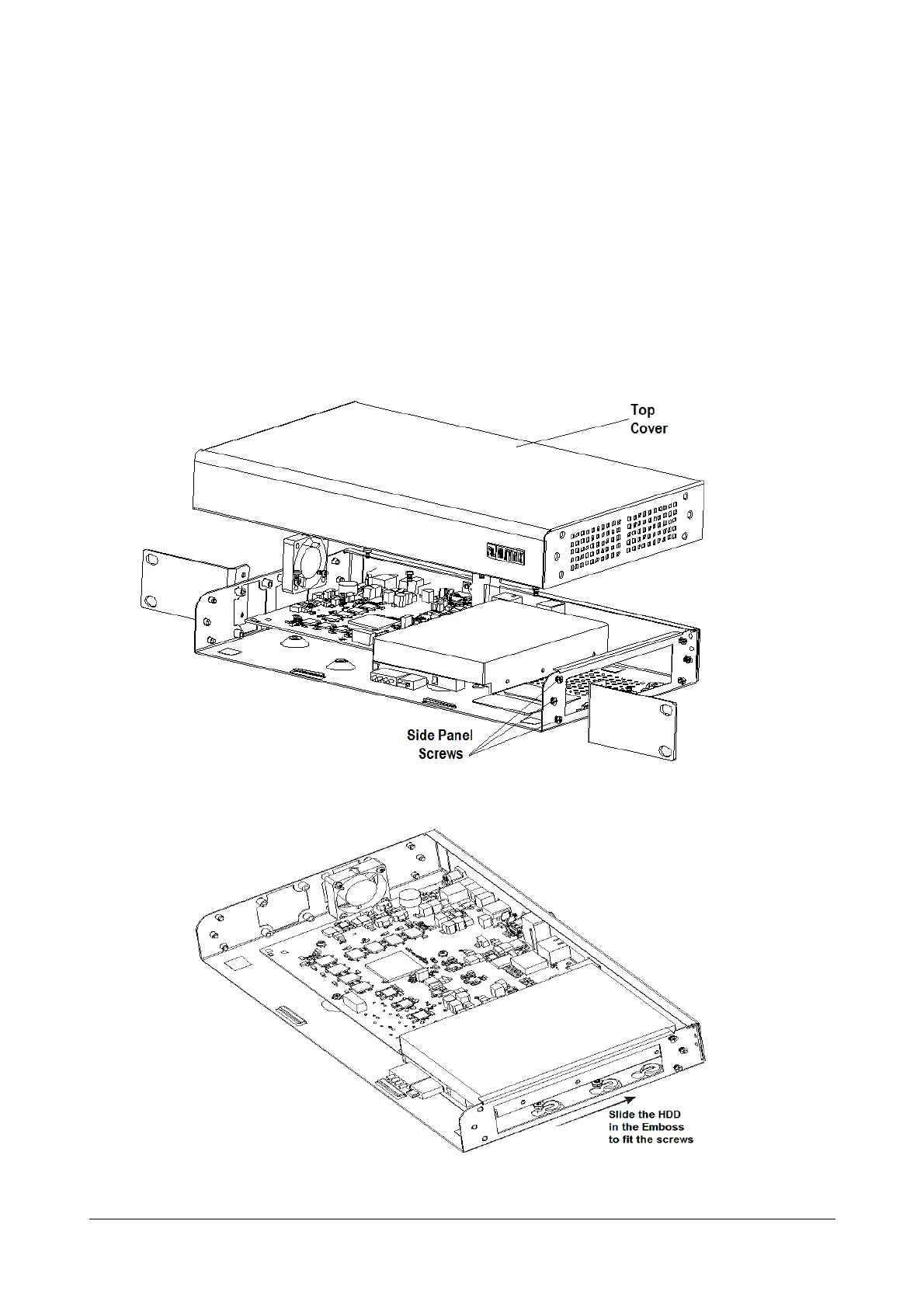

1. Loosen the screws at the side panel to remove the top cover.
2. Fix four screws in the HDD (Do not fit the screws completely, turn just three rounds).
NVR0801X/NVR1601X
3. Place the HDD in accordance with the four holes in the bottom of the enclosure as shown.
To Next Page
