Matrix SATATYA NVR6404X System Manual

74 Matrix SATATYA Devices Manual
NVR16H
NVR16S

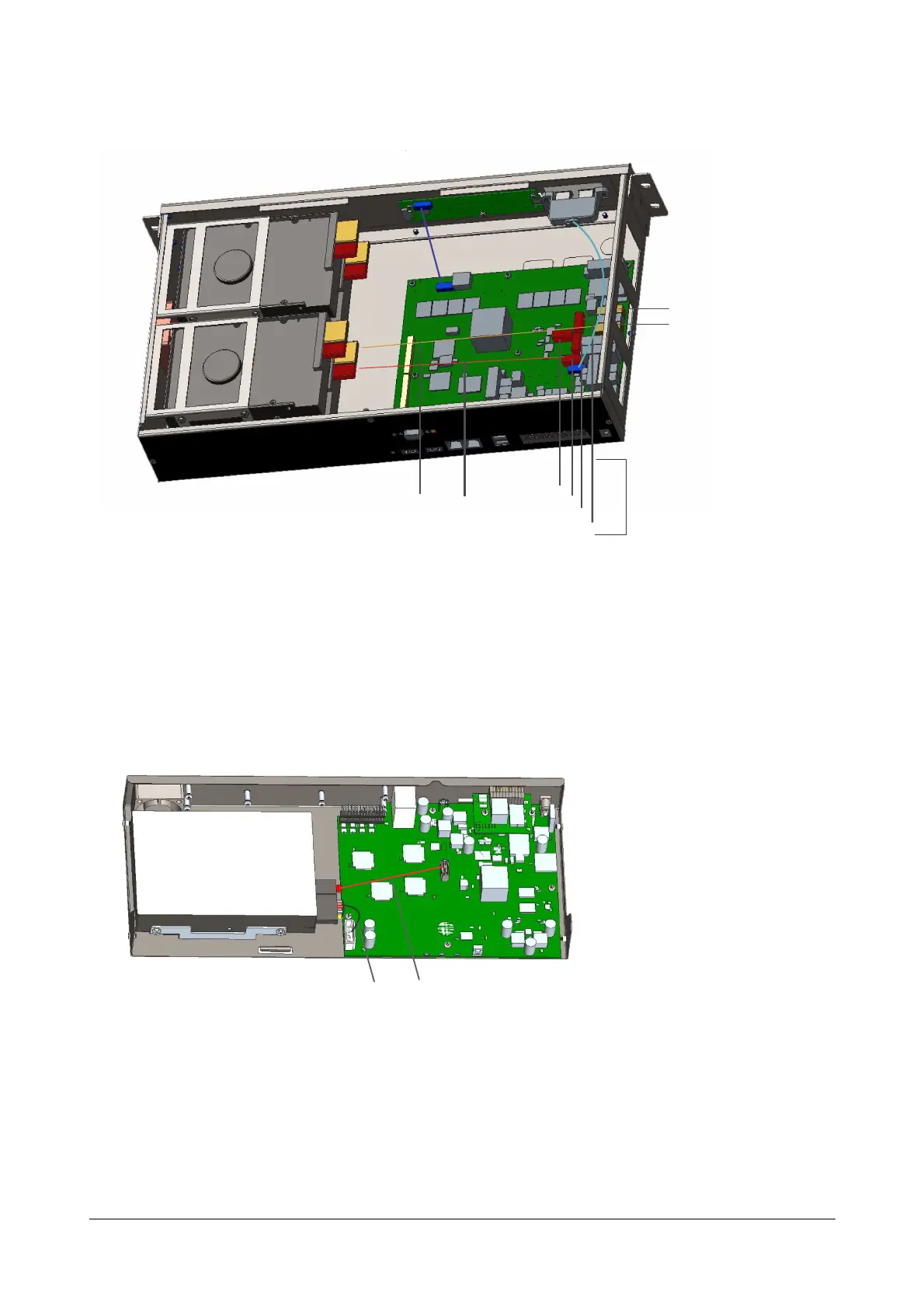

1. Place the Hard Disk on the bottom plate, aligned with the screws on the plate. Secure the hard disk to the
bottom plate with the screws provided using a magnetic screw driver.
2. Plug the SATA power cable and the data cable into the respective connectors on the Hard disk.
• Replace the top cover and secure it with the screws.
HDD 1
HDD 2
HDD 3
HDD 4
SATA DATA
CABLE
SATA POWER
CABLE
POWER
CONNECTORS
SATA DATA
CONNECTORS
SATA
POWER
SATA
DATA

Matrix SATATYA NVR6404X Specifications

General

Brand	Matrix
Model	SATATYA NVR6404X
Category	DVR
Language	English
