76 Matrix SATATYA Devices Manual

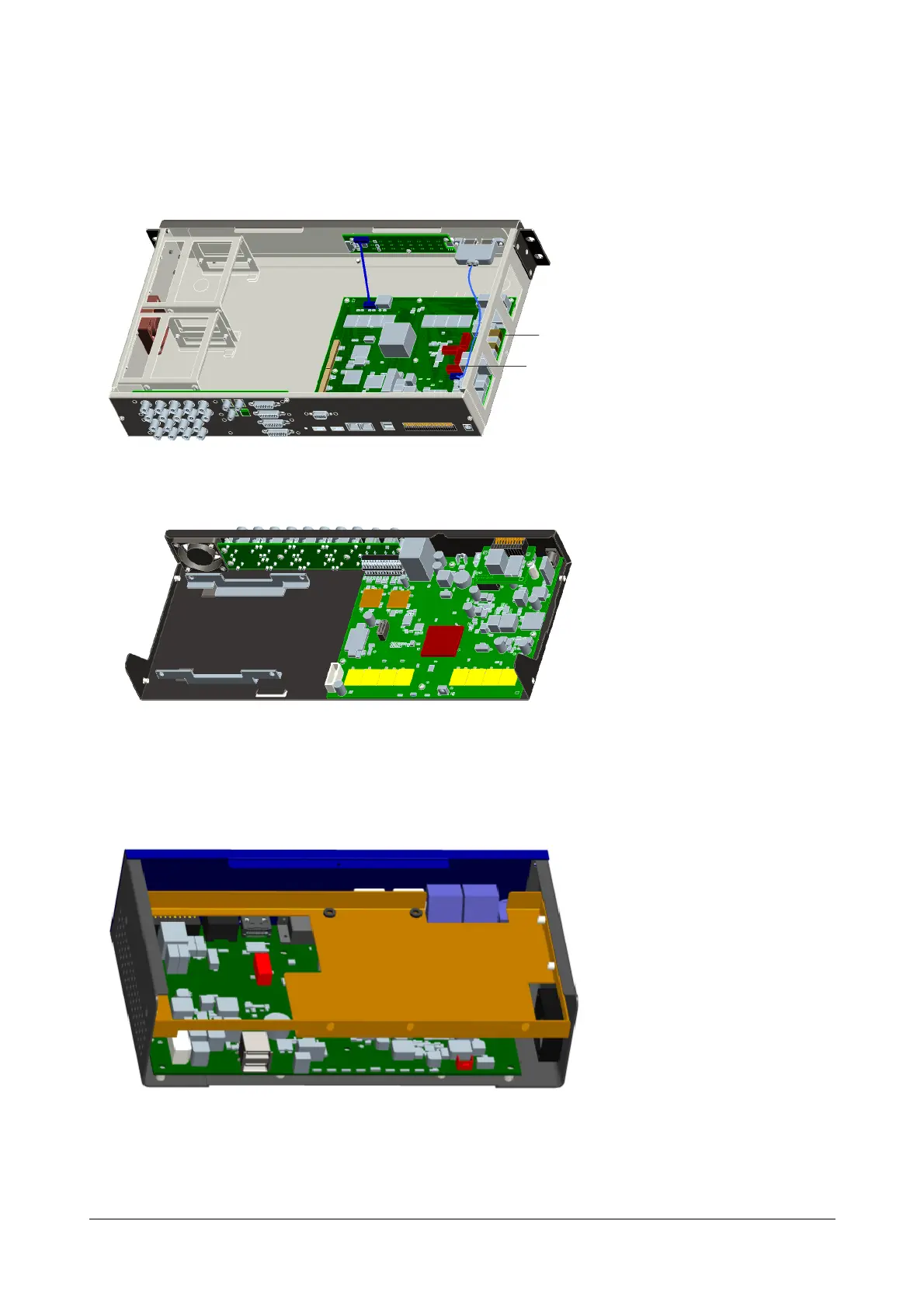

Installing HDD in HVR Variants
The SATATYA HVR board comes with on board SATA and power connectors.
HVR 1624P and HVR 0824P
HVR 1624S and HVR 0824S
HVR 0408P and HVR 0408S
Follow these instructions to install a disk:
POWER
CONNECTORS
SATA DATA
CONNECTORS
HVR16/8P
HVR16/8S
HVR4
