90 Matrix SATATYA Devices Manual
Select the LAN 1 from the LAN drop-down list.
IP Assignment Mode

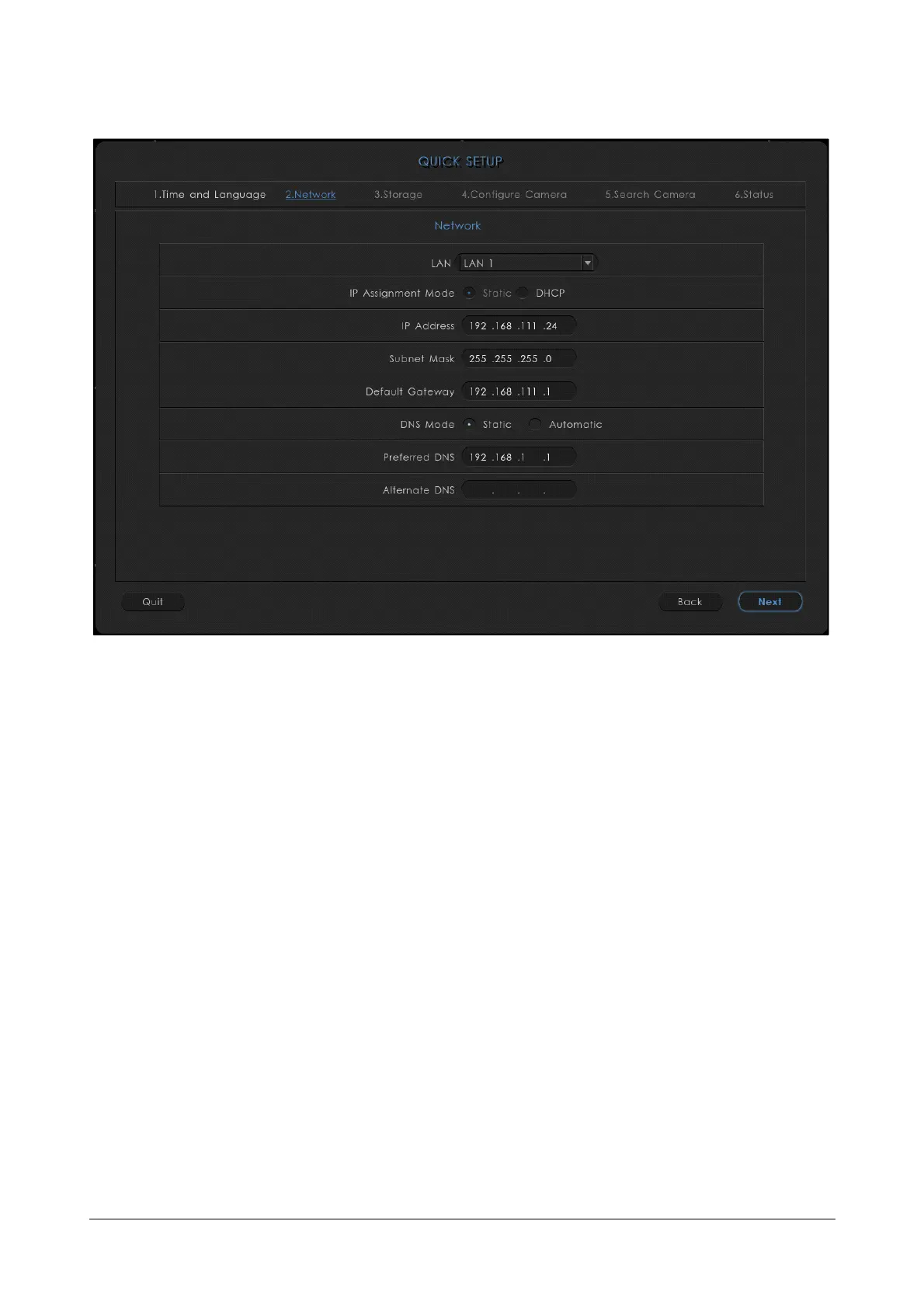

The SATATYA NVRX has three modes of IP assignment based on which the network settings of the NVRX can be
configured. User can configure the following two modes of IP assignments from the Quick Setup Wizard as shown
below:
Static: On selecting Static mode the administrator can assign,
• IP Address: Static IP address to the NVRX based on the availability.
• Subnet Mask: The Subnet Mask for the LAN
• Gateway: The IP Address of the Gateway
DHCP: On selecting the DHCP option, the DHCP server automatically assigns an IP address to the NVRX when it
comes on the network and thus no physical IP address is to be assigned to the NVRX by the administrator.
