Matrix SATATYA PARAM NVR8S User Manual

Matrix SATATYA NVR Quick Start 5

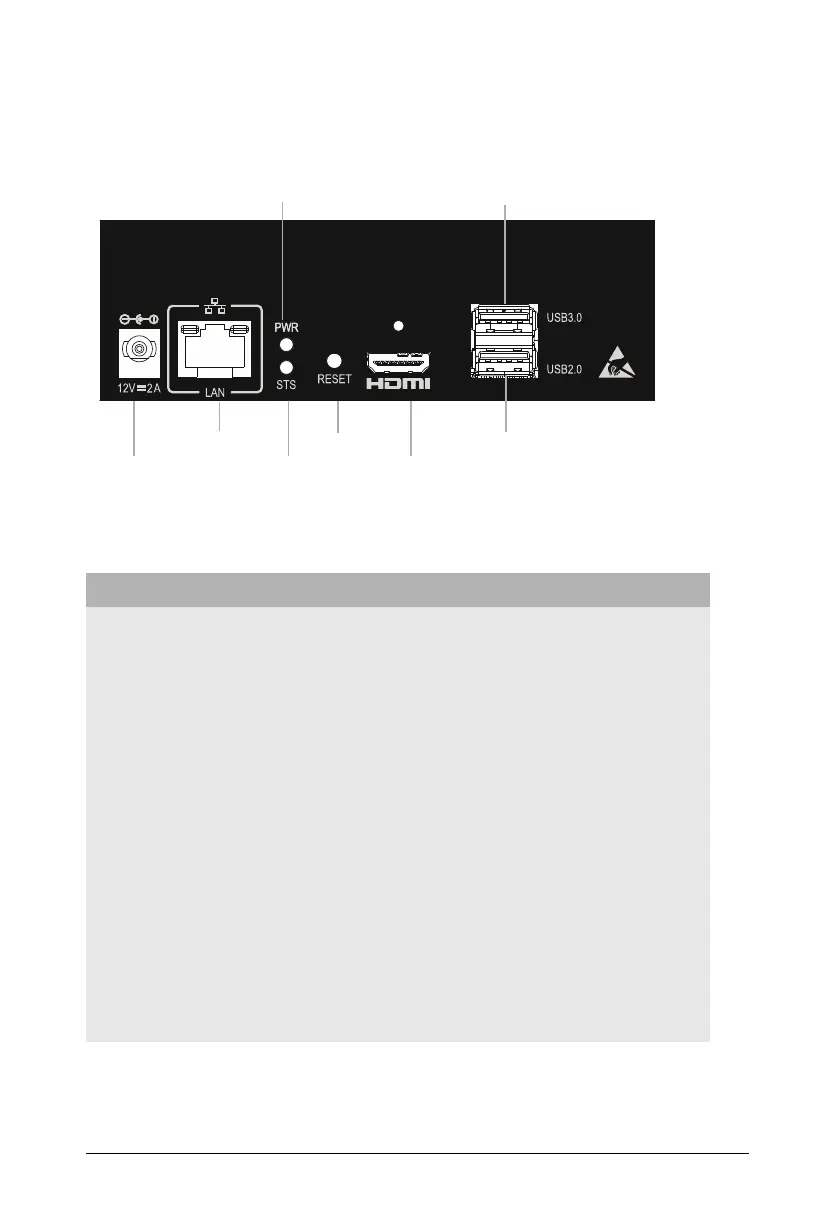

NVRX Panel
NVR0401XS P2/NVR0801XS P2/NVR1601XS P2
Ports and Connectors
Interface Description All Variants
USB 3.0
(Upper)
USB 3.0, used for Manual Backup.
To connect USB Mouse.
To connect Dongle.
Yes
Ratings: 5VDC - 500mA
USB 2.0
(Lower)
USB 2.0, used for Scheduled Backup.
To used to connect USB Mouse.
To connect Dongle.
Yes
Ratings: 5VDC - 500mA
HDMI 2.0
To connect a high definition digital
monitor or TV for Main view.
Yes
LAN
(RJ45)
To connect a standalone personal
computer, or a LAN Switch, or to connect
to the Internet over a DSL Modem or
Router.
Ethernet Speed:10/100/1000Mbps
Yes
Reset
Press and hold down the reset button for
atleast 4 seconds to default
the following parameters.
• LAN Settings
• User Settings
• General Settings
Yes
Power
12VCD 2A
LAN
Status
LED
Reset
HDMI
USB 2
USB 1
Power
LED

Matrix SATATYA PARAM NVR8S Specifications

General

Brand	Matrix
Model	SATATYA PARAM NVR8S
Category	Security System
Language	English
