40
9.4 DECK CUSHION REPLACEMENT

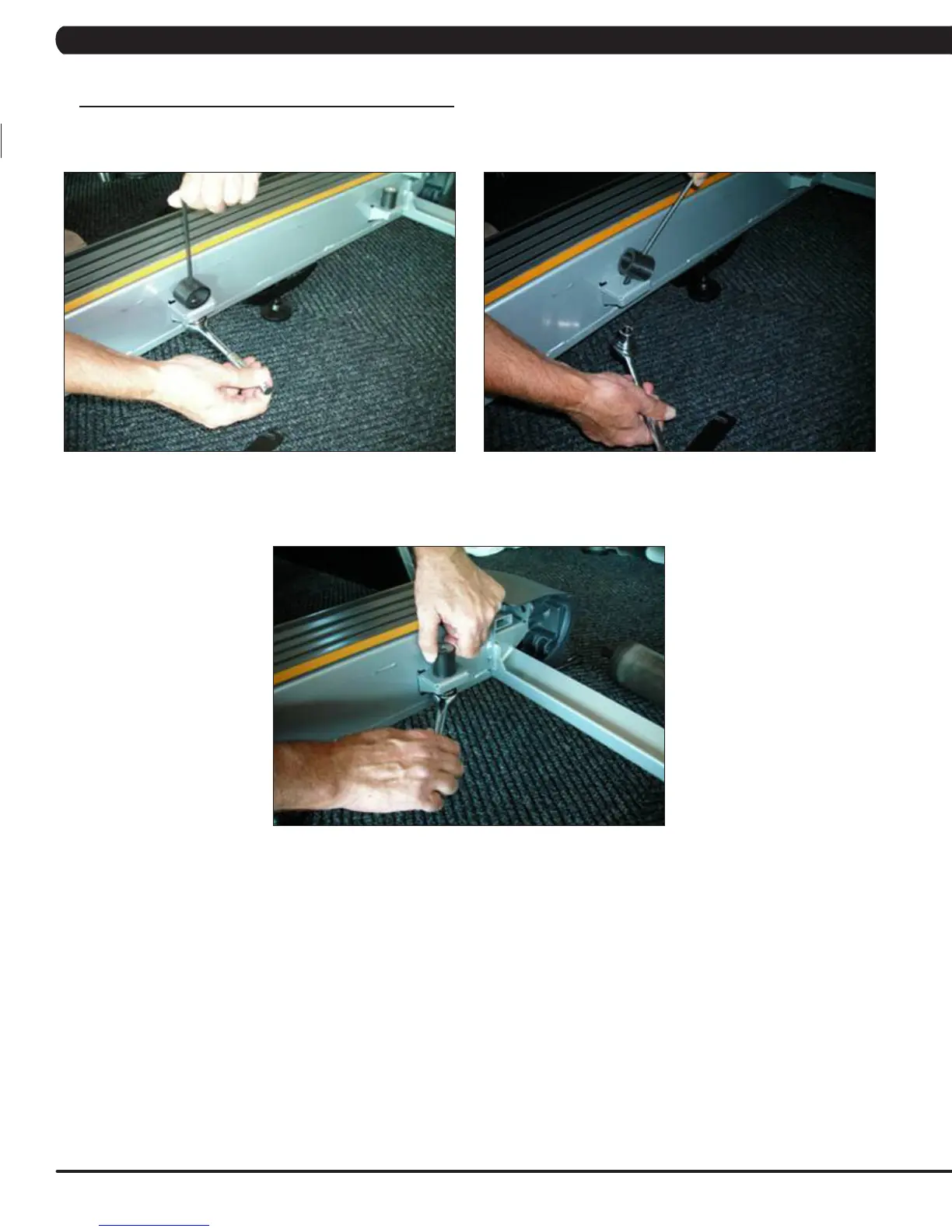

FIGURE A FIGURE B
FIGURE C
1) Remove the deck as outlined in Section 9.3.
2) Holding the bolt with a 5 mm Allen wrench, loosen the nut with a 13 mm socket (Figure A & B).
3) For the rear cushion, hold the cushion and remove the 13 mm nut (Figure C).
4) Reverse Steps 1-3 to install new deck cushions.
5) Test the treadmill for function as outlined in Section 9.21.
CHAPTER 9: PART REPLACEMENT GUIDE
