43

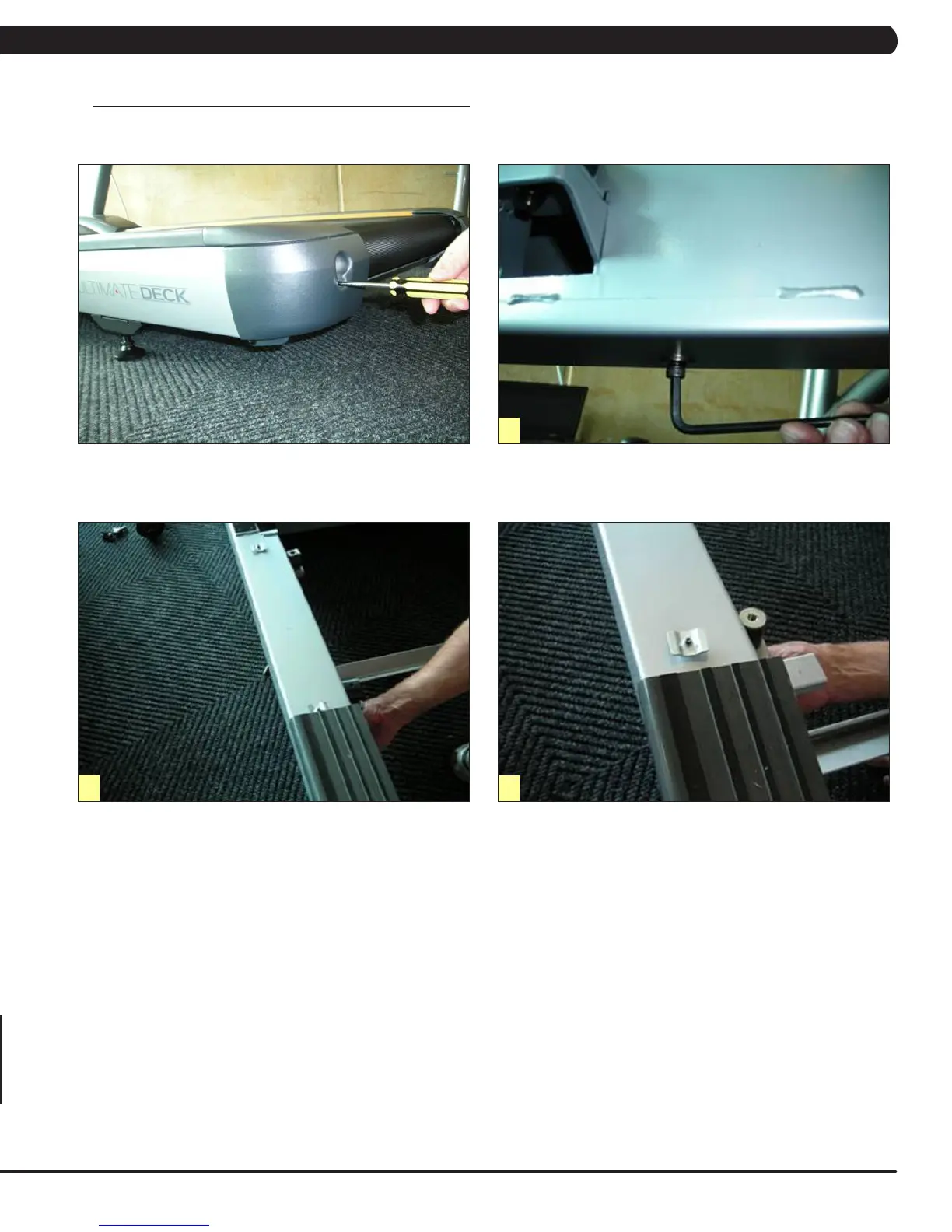

9.7 SIDE RAIL REPLACEMENT
FIGURE A
FIGURE B
1) Remove the rear end cap using a Phillips screwdriver (Figure A).
2) Loosen the four screws under the frame using a 5 mm Allen wrench (Figure B).
3) Slide the rail off the back of the treadmill (Figures C & D).
4) Reverse Steps 1-3 to install a new side rail. NOTe: After reinstalling the side rail, make sure the rear end cap is on first before tightening
the screws for proper gap spacing. Be careful not to over tighten the screws, or they will poke through the top of the side rail.
FIGURE C FIGURE D
CHAPTER 9: PART REPLACEMENT GUIDE
