9.9 MOTOR REPLACEMENT
1) Turn off power to the treadmill and disconnect the power cord.
2) Remove the motor cover as outlined in Section 9.1.
3) Use a hook or loop of wire to remove the spring from the drive belt tensioner (Figure A).
4) The tensioner should now pivot away from the drive belt (Figure B
5) With the tension on the drive belt relieved it can be walked off of the motor pulley (Figure C).
6) Cut any wire ties holding the motor cable to the frame (Figure D).

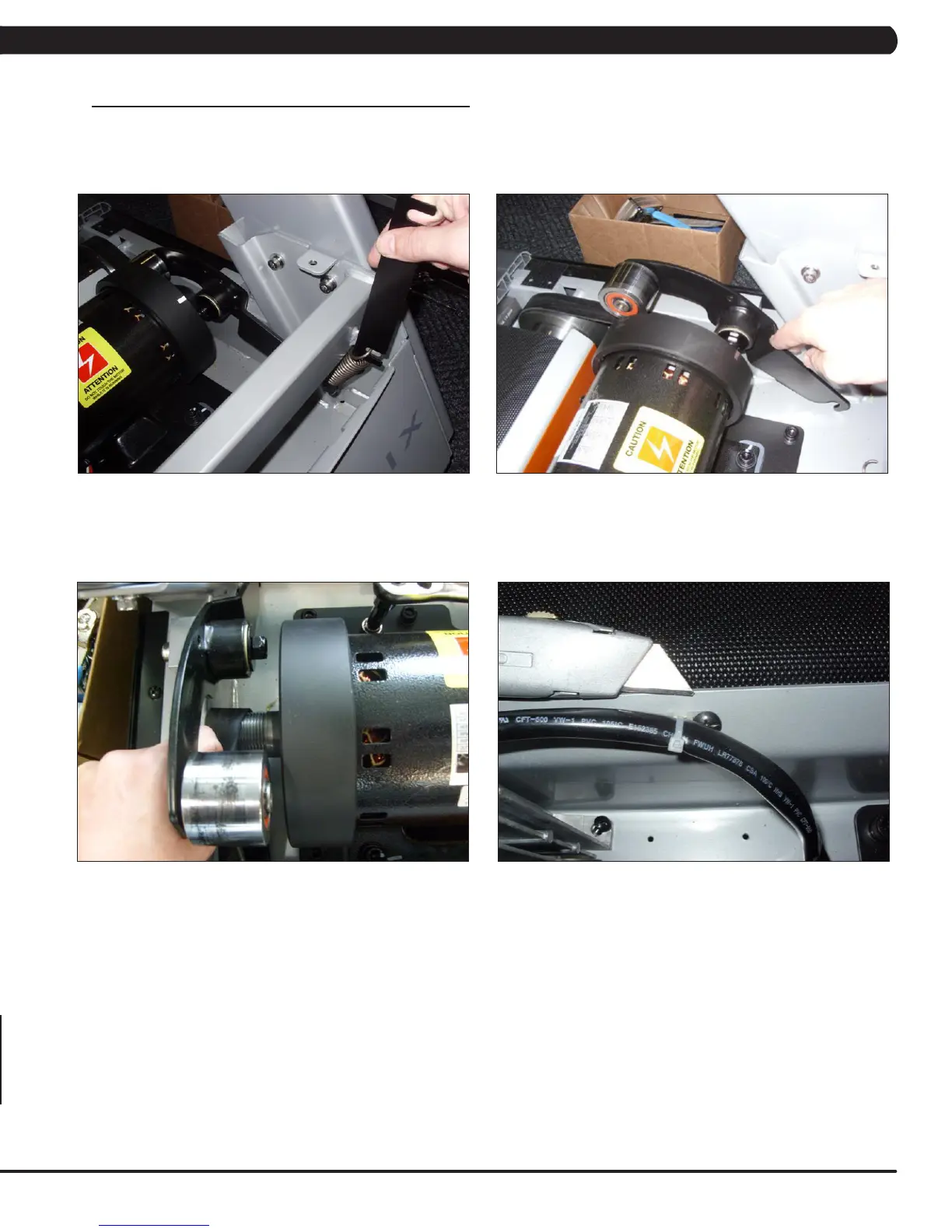

FIGURE A
FIGURE B
FIGURE C FIGURE D
