9.14 CONSOLE FRAME REPLACEMENT
1) Turn off power to the treadmill and disconnect the power cord.
2) Remove the console as outlined in Section 9.12.

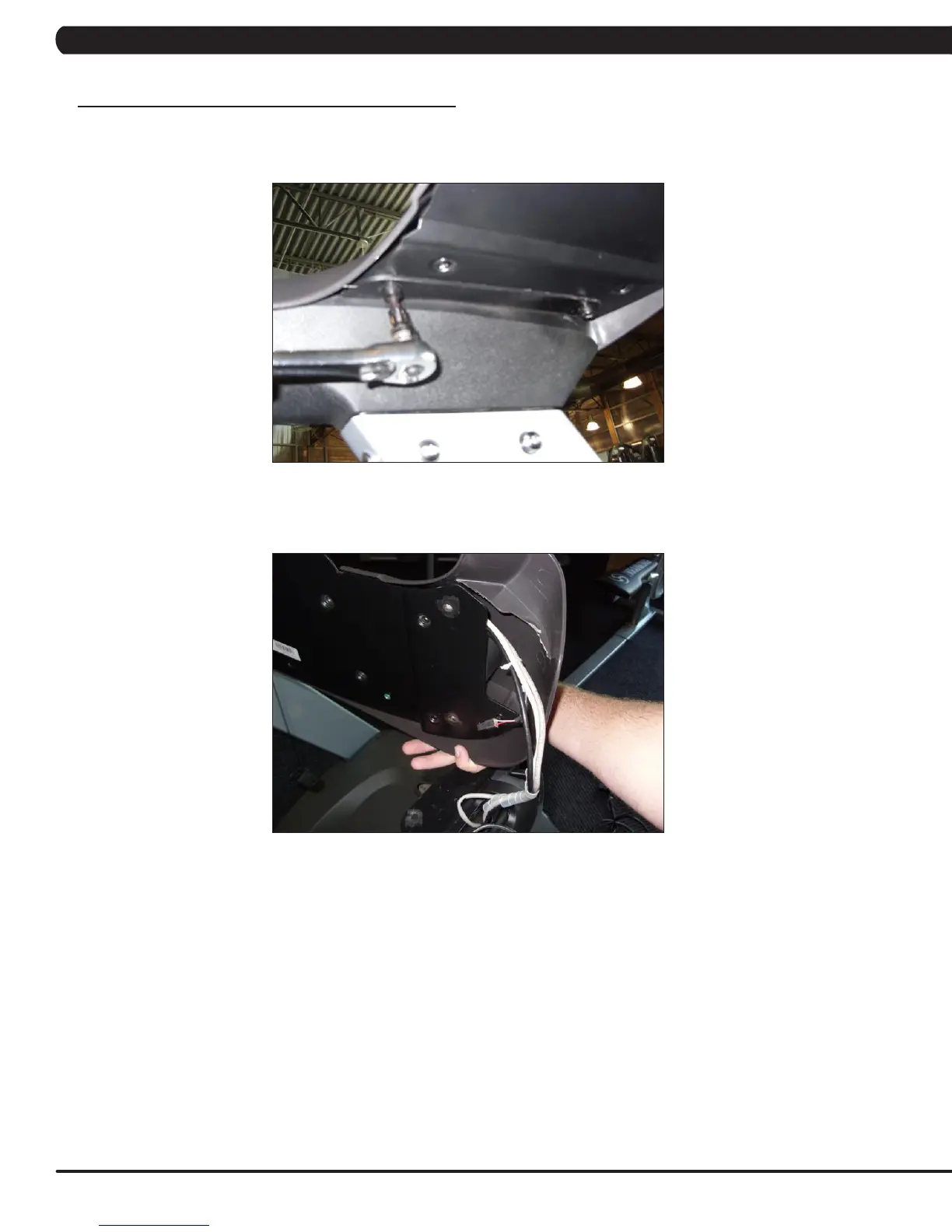

3) Remove the 2 screws on each side holding the console frame to the handlebar frame (Figure A).
4) Remove the console frame from the handlebar frame. NOTe: The console cable wiring will need to be removed from the console frame as
it is removed (Figure B).
5) Reverse Steps 1-4 to install a new console frame.
6) Test the treadmill for function as outlined in Section 9.21.
FIGURE A
FIGURE B
