20

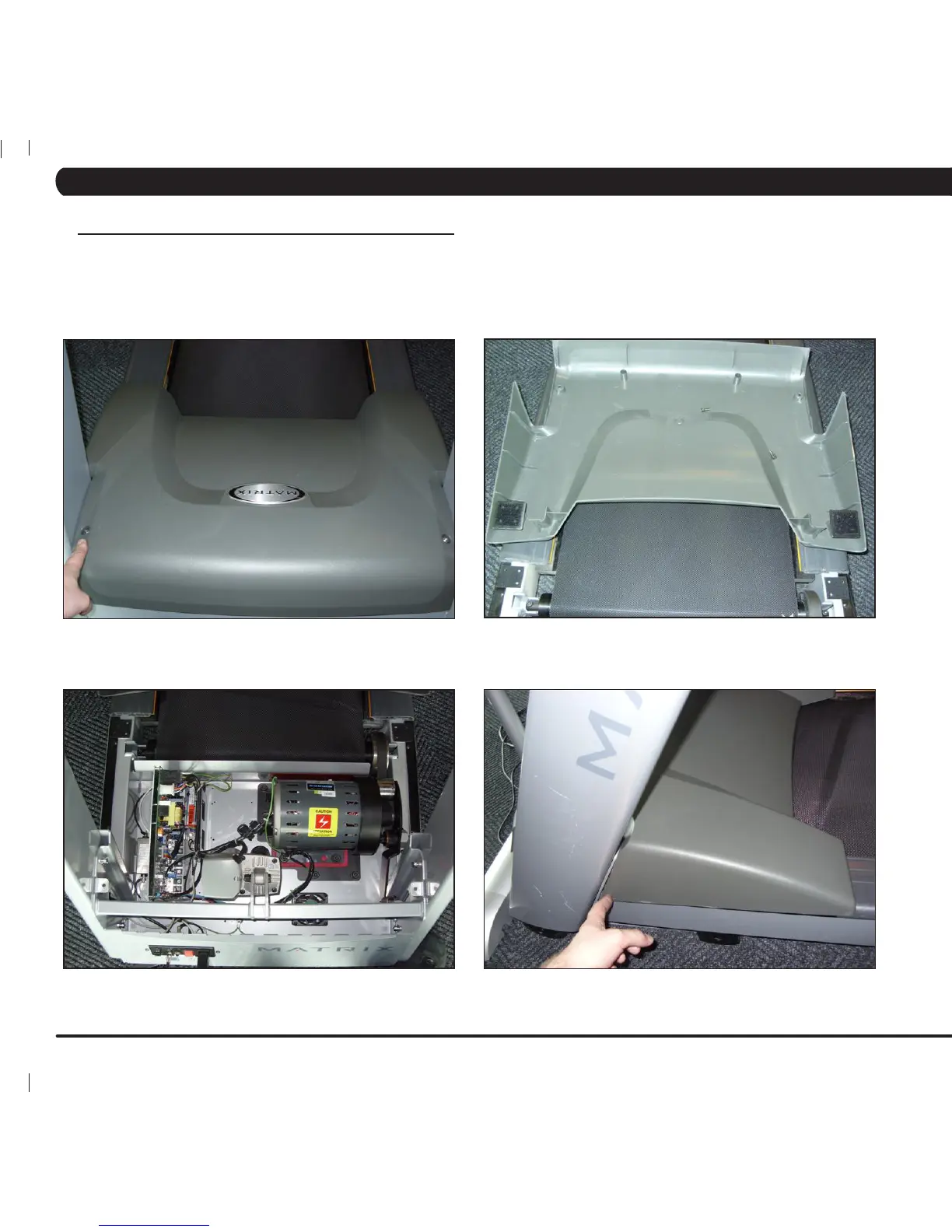

9.1 PLASTIC SHROUD REMOVAL
1) Remove the 2 screws holding the front shroud to the frame using a 6 mm Allen wrench (Figures A).
2) The shroud is velcroed to the frame, so you will have to pull up with some force (Figure B).
3) Figure C shows the motor area with the cover removed.
4) NOTE: When reinstalling the motor cover, be sure to tuck the sides in so they do not bow outward (Figure D).
FIGURE A FIGURE B
FIGURE C
CHAPTER 9: PART REPLACEMENT GUIDE
FIGURE D
