9.14 CONSOLE REPLACEMENT
CHAPTER 9: PART REPLACEMENT GUIDE
1) Turn off power to the treadmill and disconnect the power cord.
2) Remove the 4 screws holding the back of the console to the front and remove the back cover (Figures A & B).
3) Disconnect the 6 wire connections from the console.
4) Remove the four 6 mm screws from underneath the console (Figure C).
5) Remove the console (Figure D).
6) Reverse Steps 1-5 to install a new console.
7) Test the treadmill for function as outlined in Section 9.23.

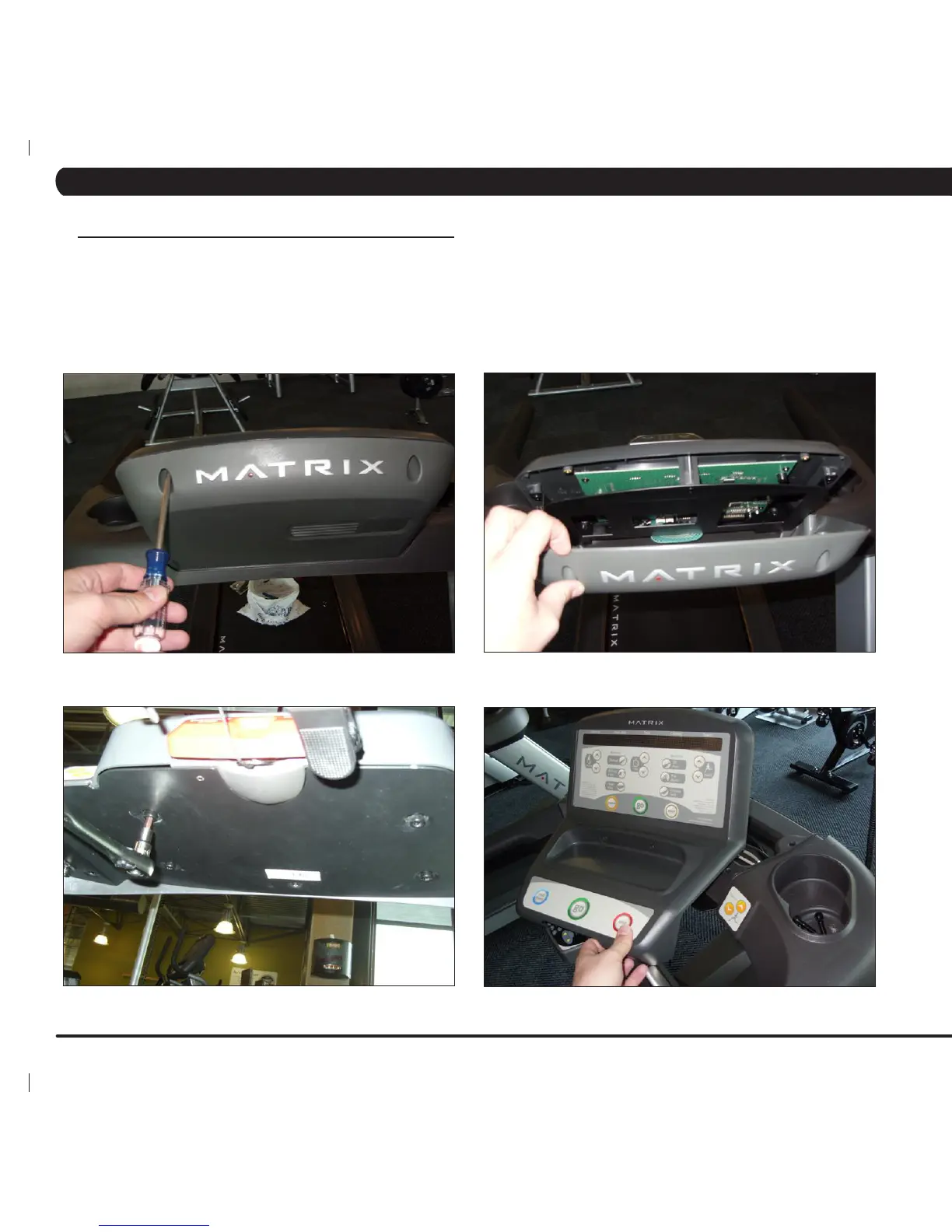

FIGURE A FIGURE B
FIGURE C FIGURE D
