Matrix T3X-02 - 9.13 INCLINE MOTOR REMOVAL

34
9.13 INCLINE MOTOR REMOVAL
CHAPTER 9: PART REPLACEMENT GUIDE
1) Turn off power to the treadmill and disconnect the power cord.
2) Lift the treadmill and support it so that the front wheels are off the floor, or the unit may be tipped on its side (Figure A).
3) Remove the clip from the pin and remove the pin attaching the incline motor to the rack (Figure B & C).
4) Disconnect the incline motor power cable from the reliance box (Figure D).
5) Disconnect the incline motor from the top mounting bracket (Figure E).
6) Lift the incline motor away from the treadmill (Figure F).
7) When installing the new incline motor, make sure to replace the white washers at the top and bottom (Figure G).
8) Test the treadmill for function as outlined in Section 9.23.

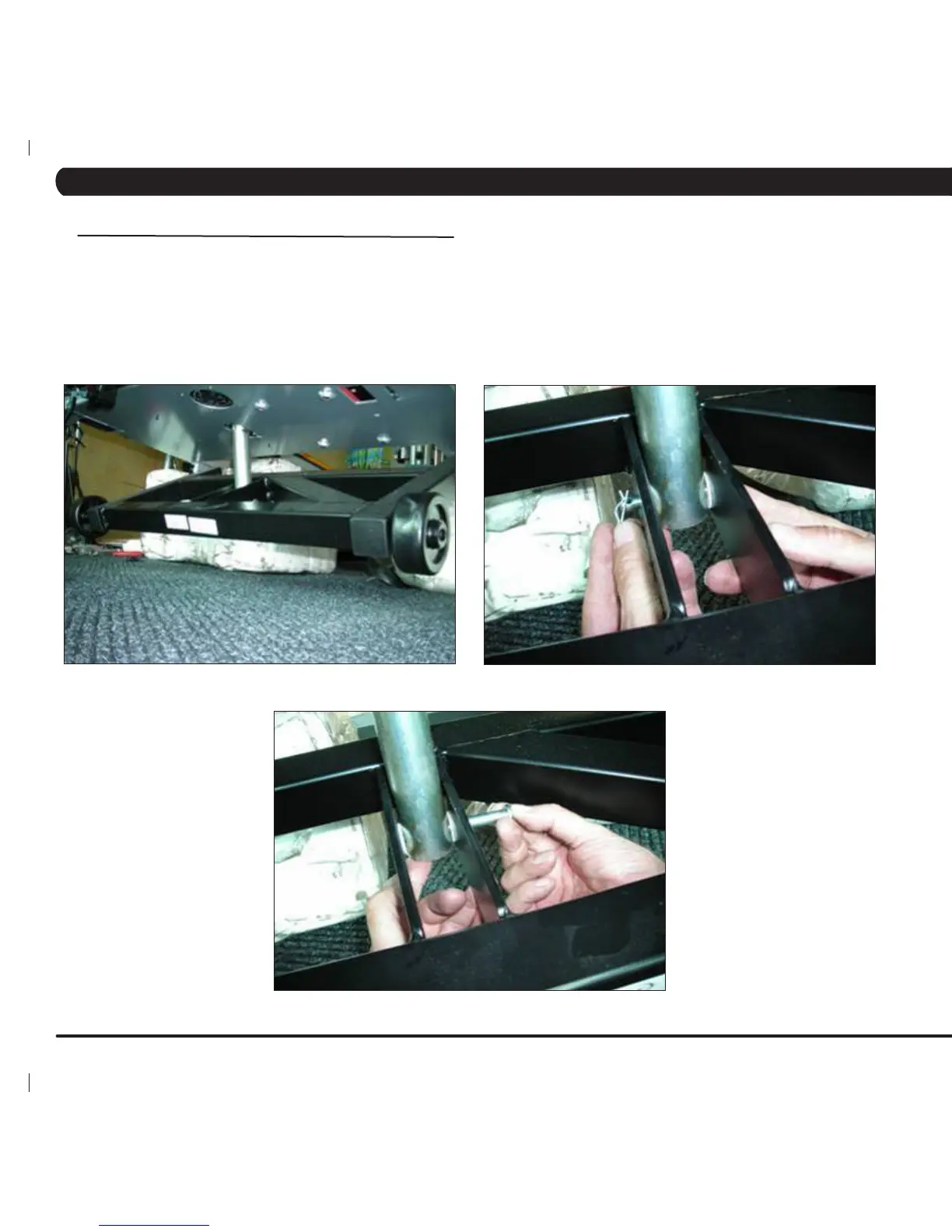

FIGURE A
FIGURE B
FIGURE C
