9.12 DAUGHTER BOARD REPLACEMENT
CHAPTER 9: PART REPLACEMENT GUIDE
1) Turn off power and disconnect the cord from the machine.
2) Remove the front shroud as outlined in Section 9.1.
3) Remove the wire connections to the Daughter Board.
4) Remove the 2 screws holding the Daughter Board to the base frame (Figure A).
5) Remove the Daughter Board (Figure B).
6) Reverse Steps 1-5 to install a new Daughter Board. NOTE: When reinstalling the new Daughter Board, make sure it has the white wire
connector seen in Figure C. If not, move the wire connector from the defective Daughter Board to the new one.
7) Test the treadmill for function as outlined in Section 9.23.

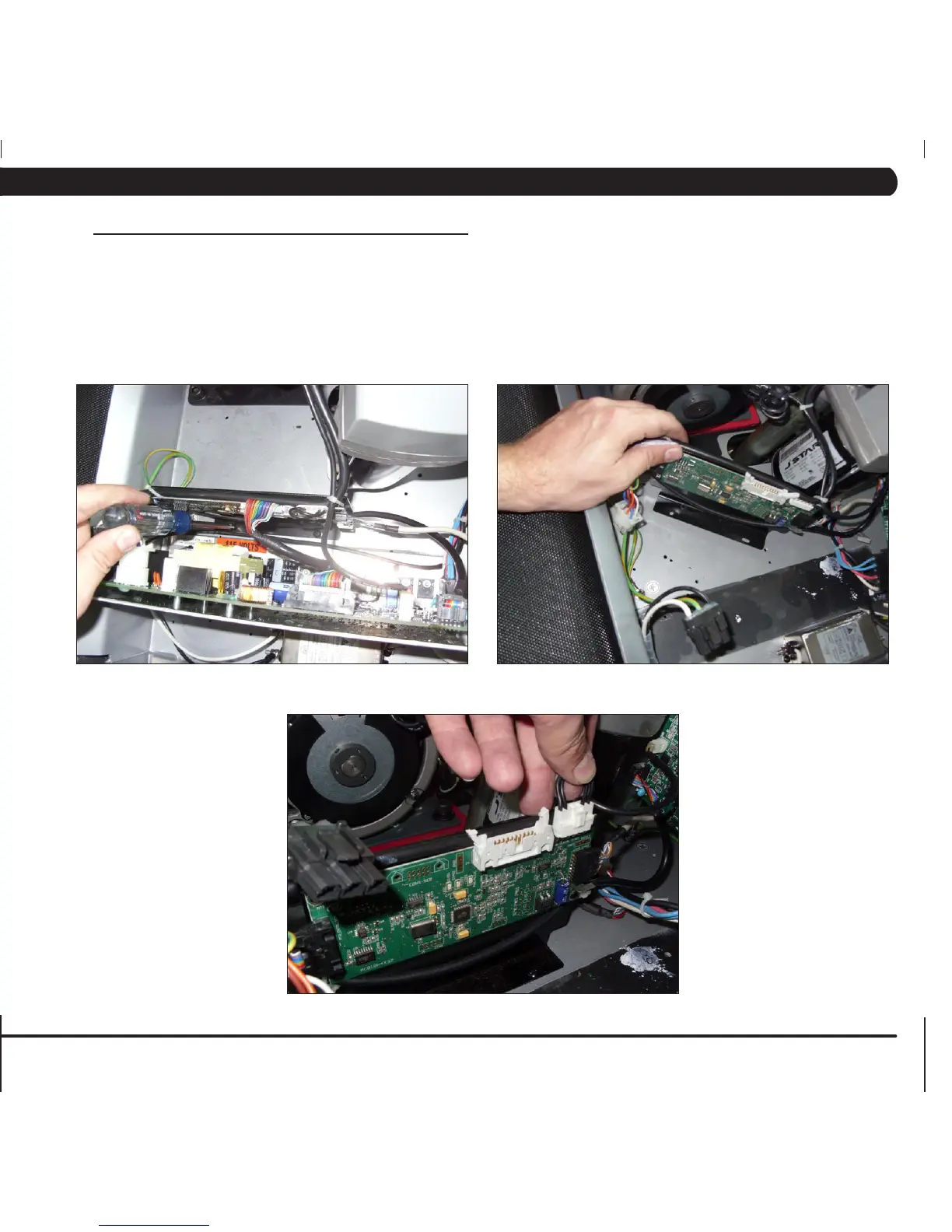

FIGURE A
FIGURE B
FIGURE C
