CHAPTER 9: PART REPLACEMENT GUIDE
9.6 RUNNING BELT REPLACEMENT
1) Remove the front shroud as outlined in Section 9.1.
2) Remove the rear roller as outlined in Section 9.2.
3) Remove the deck as outlined in Section 9.3.
4) Remove the front roller as outlined in Section 9.5.

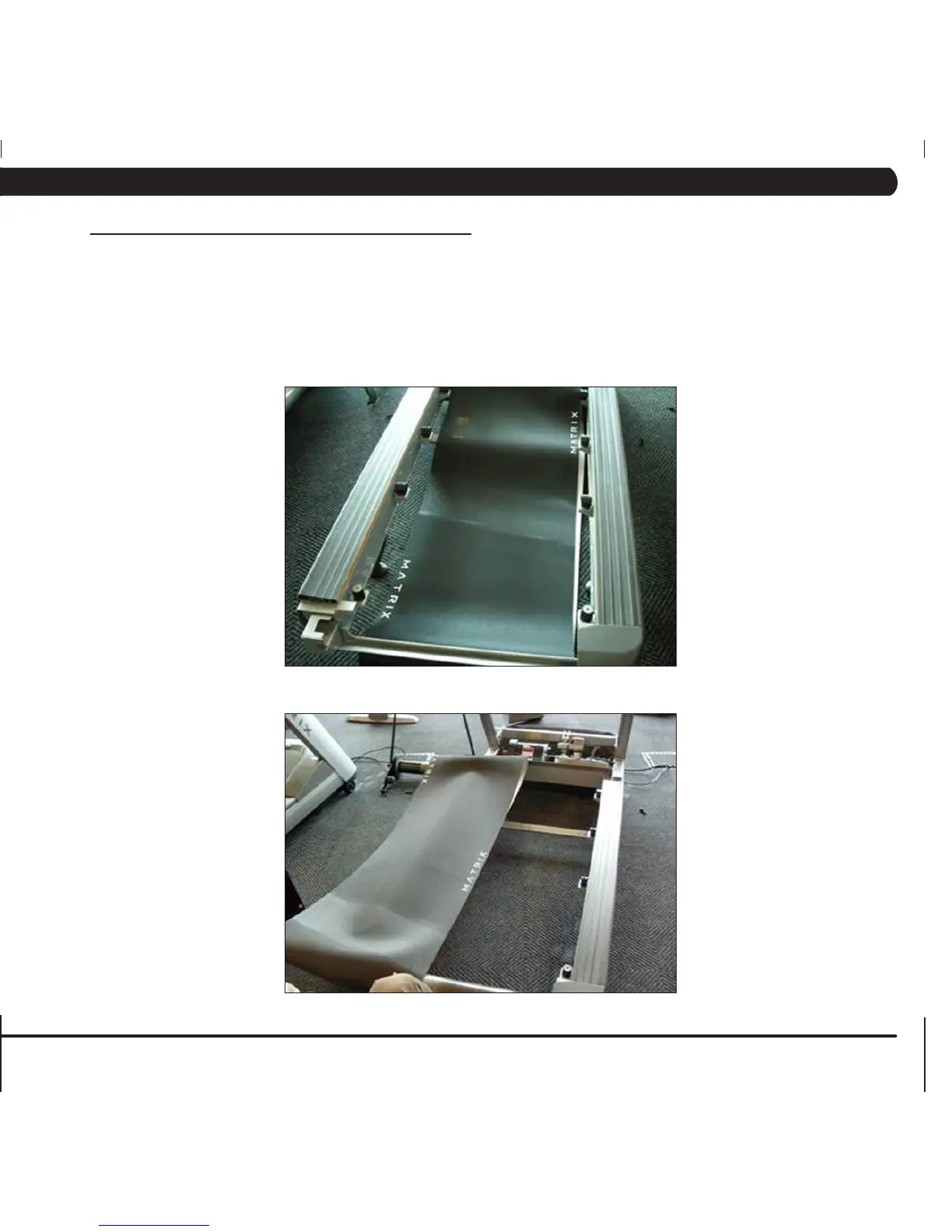

5) Remove the running belt and replace it with a new belt (Figures A & B). NOTE: New running belts should ALWAYS be installed on a new
deck surface (deck should either be flipped or replaced to gain a new surface).
6) Reverse Steps 1-5 to install a new running belt.
7) Test the treadmill for function as outlined in Section 9.23.
FIGURE A
FIGURE B
