45

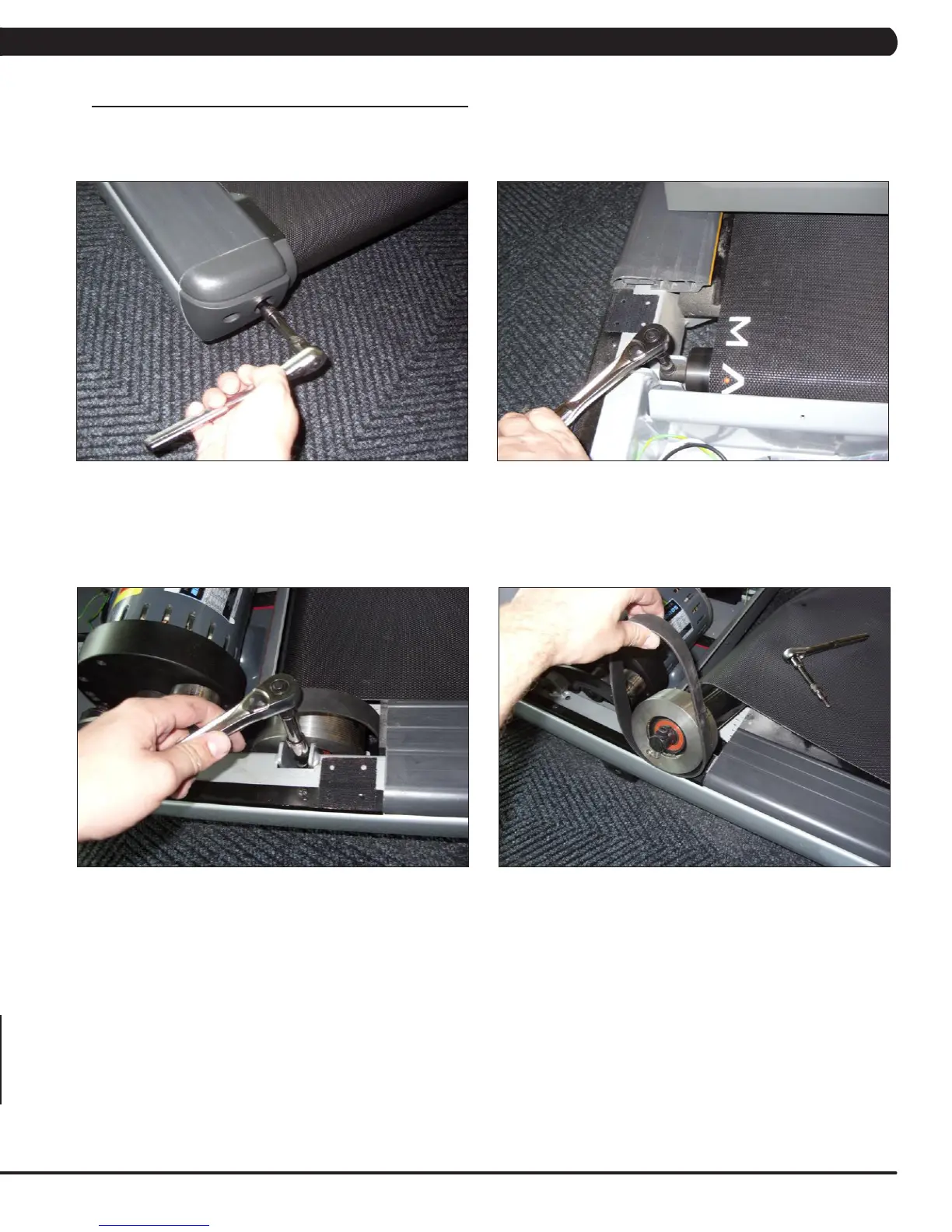

FIGURE D FIGURE E
FIGURE F FIGURE G
9.10 DRIVE BELT REPLACEMENT - CONTINUED
5) Loosen the rear roller screws to relieve tension on the running belt (Figure D).
6) Remove the two 8 mm front roller screws (Figures E & F).
7) Lift the roller and remove the old drive belt (Figure G).
8) Reverse Steps 1-7 to install a new drive belt. NOTE: After installing a new belt, check it for correct alignment to the motor pulley before
setting the tensioner in place.
9) Test the treadmill for function as outlined in Section 9.21.
CHAPTER 9: PART REPLACEMENT GUIDE
