9.11 INCLINE MOTOR REPLACEMENT
1) Turn off power to the treadmill and disconnect the power cord.
2) Lift the treadmill and support it so that the front wheels are off the floor, or the unit may be tipped on its side (Figure A).
3) Remove the clip from the pin and remove the pin attaching the incline motor to the rack (Figure B & C).

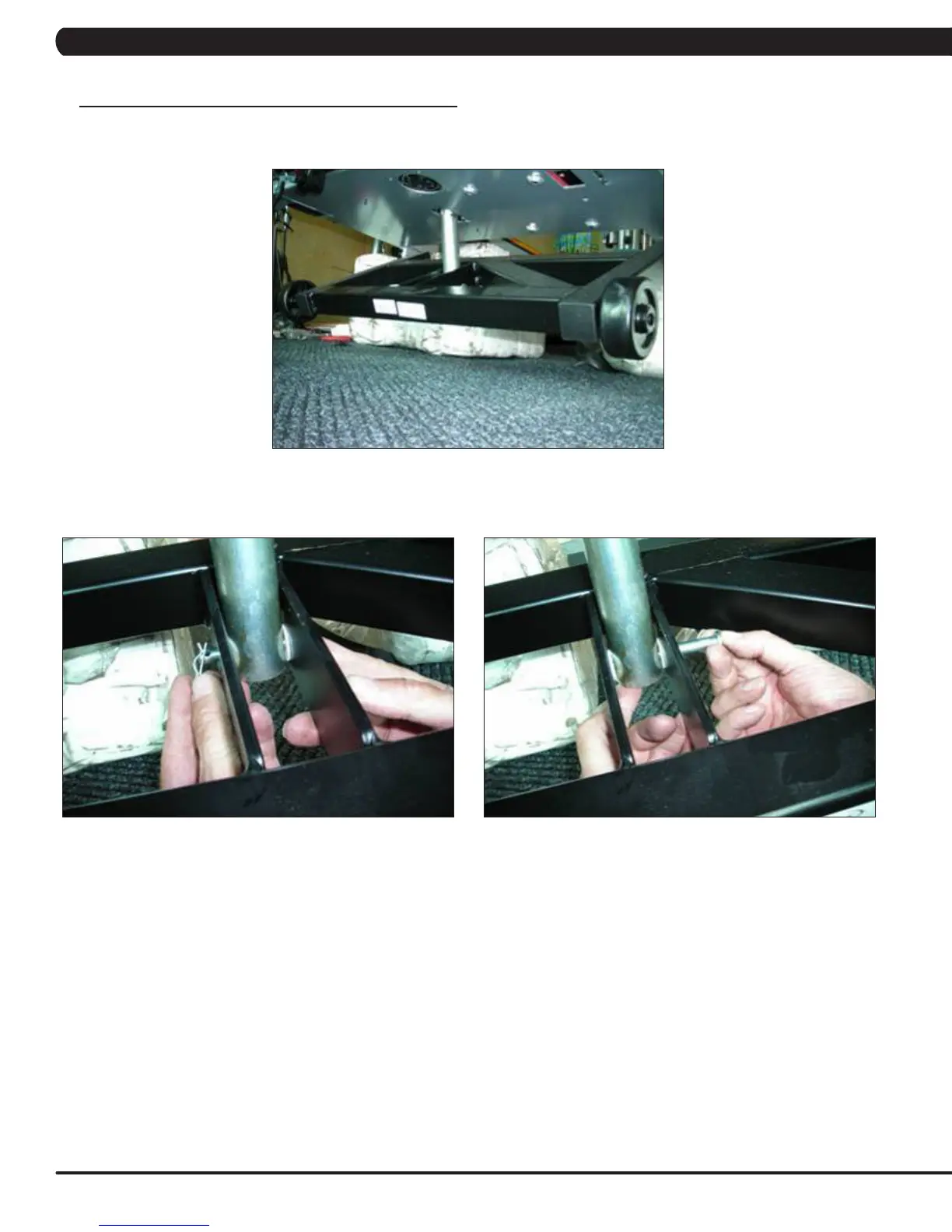

FIGURE A
FIGURE B FIGURE C
