FIGURE A

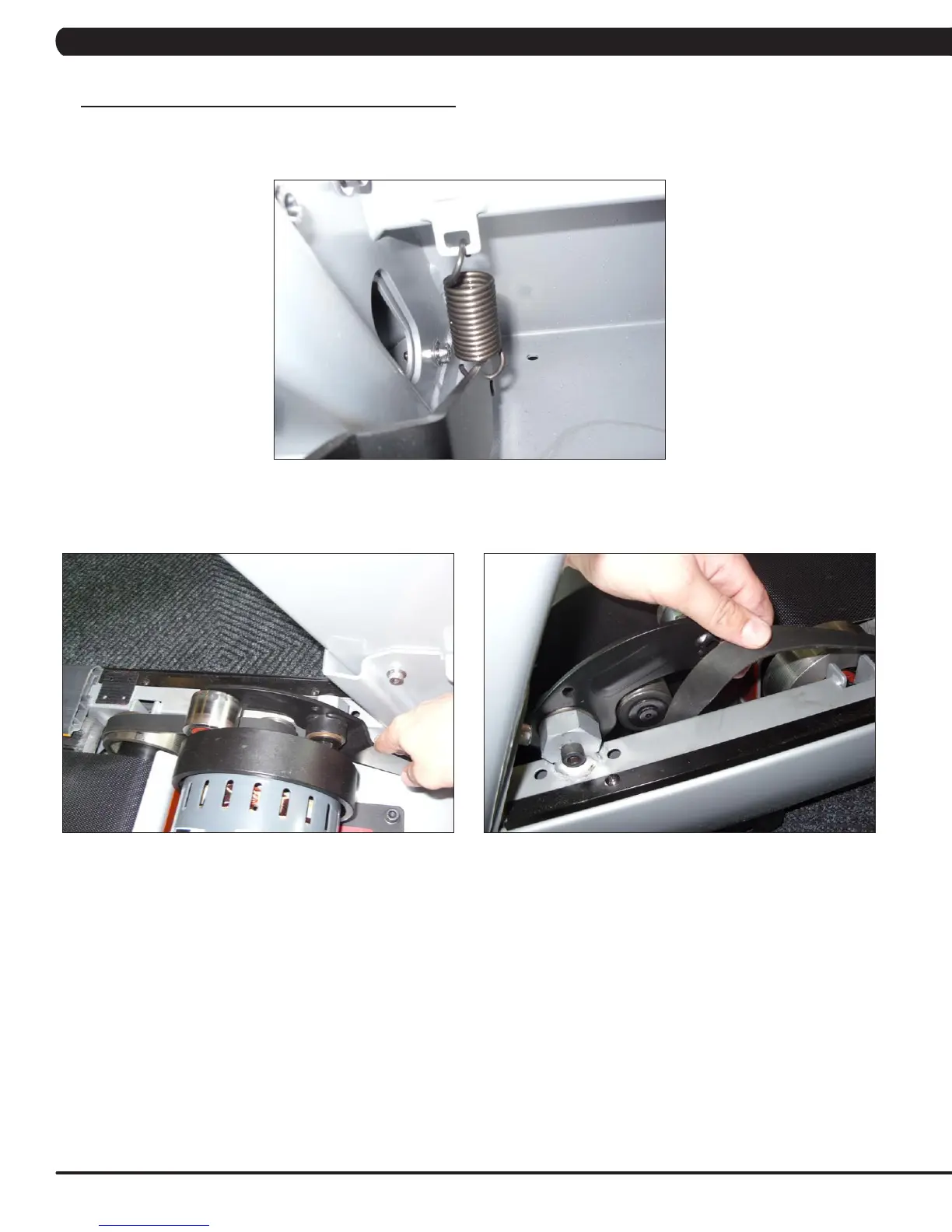

1) Turn off power to the treadmill and disconnect the power cord.
2) Remove the motor cover as outlined in Section 9.1.
3) Release the drive belt tensioner spring (Figure A).
4) With the spring released, rotate the tensioner to relieve tension on the drive belt and walk the drive belt off of the motor pulley (Figures B & C).
9.10 DRIVE BELT REPLACEMENT
FIGURE B FIGURE C
CHAPTER 9: PART REPLACEMENT GUIDE
