9.13 EMERGENCY STOP SWITCH REPLACEMENT
1) Turn off power to the treadmill and remove the power cord.
2) Remove the console as outlined in Section 9.12.
3) Remove the 2 screws holding the red emergency stop key to the emergency stop frame (Figure A).
4) Remove the 2 screws holding the emergency stop frame to the console frame (Figure B).
5) Using a flat screwdriver, flex the red emergency stop key to remove it from the emergency stop frame (Figures C & D).

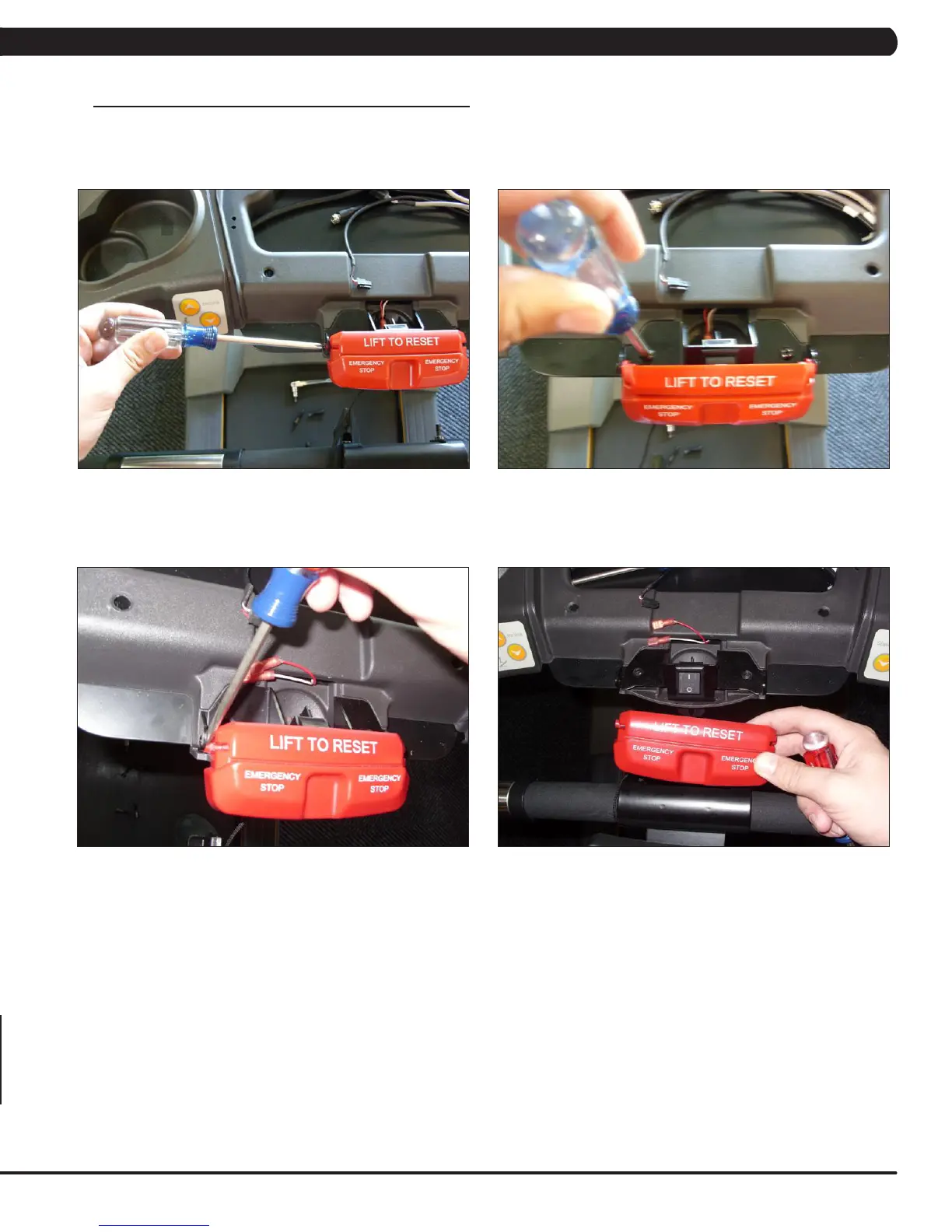

FIGURE A FIGURE B
FIGURE C FIGURE D
