50

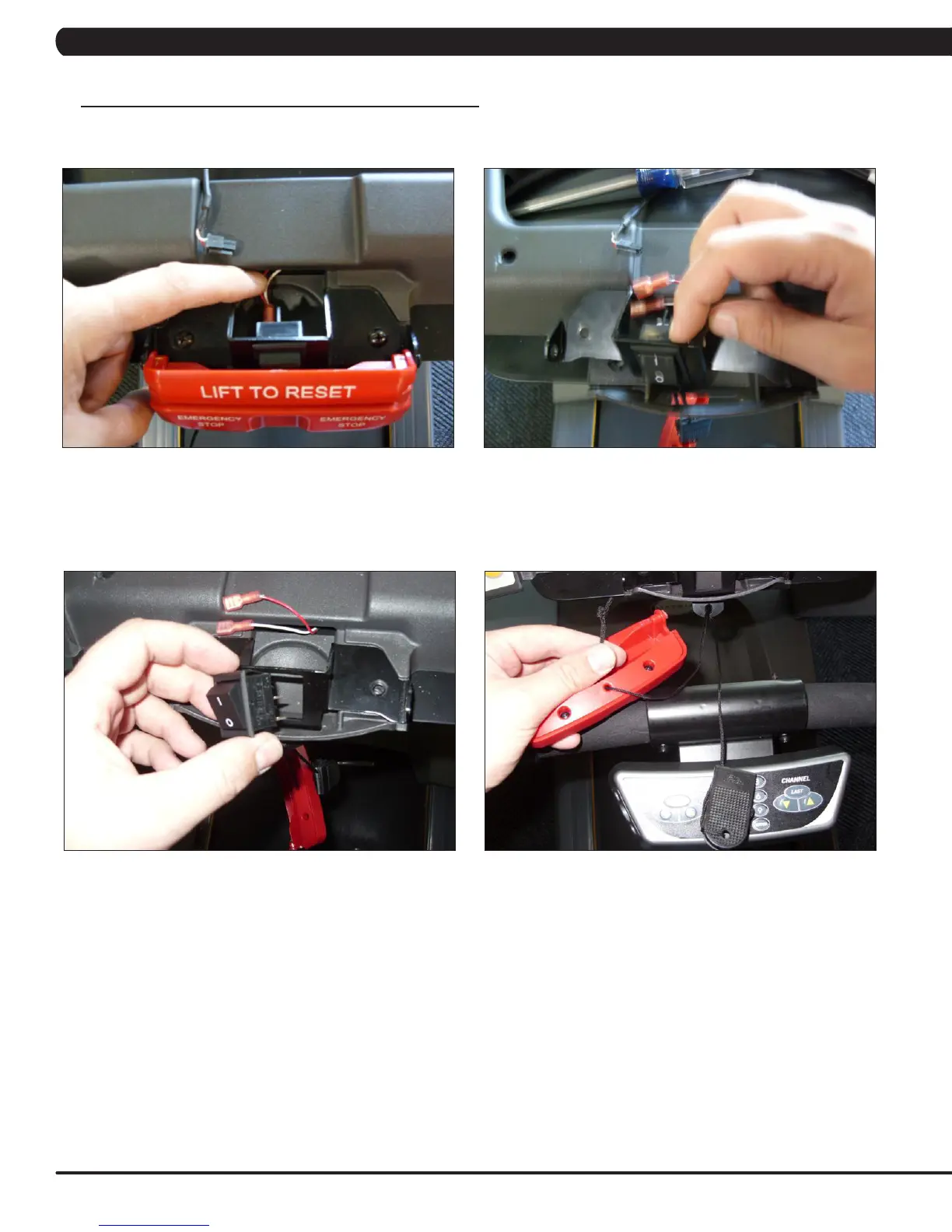

FIGURE E FIGURE F
FIGURE G FIGURE H
9.13 EMERGENCY STOP SWITCH REPLACEMENT - CONTINUED
6) Disconnect the 2 wires plugged into the back of the emergency stop switch (Figure E).
7) Depress the tabs on the top and the bottom of the emergency stop switch (Figure F).
8) This will allow the emergency stop to be removed from the emergency stop frame (Figure G).
9) Reverse Steps 1-8 to install a new emergency stop switch. NOTE: If replacing the red emergency stop key, be sure to attach the safety clip
string to the red emergency stop key before re-installing it (Figure H).
10) Test the treadmill for function as outlined in Section 9.21.
CHAPTER 9: PART REPLACEMENT GUIDE
