9.11 INCLINE MOTOR REPLACEMENT - CONTINUED

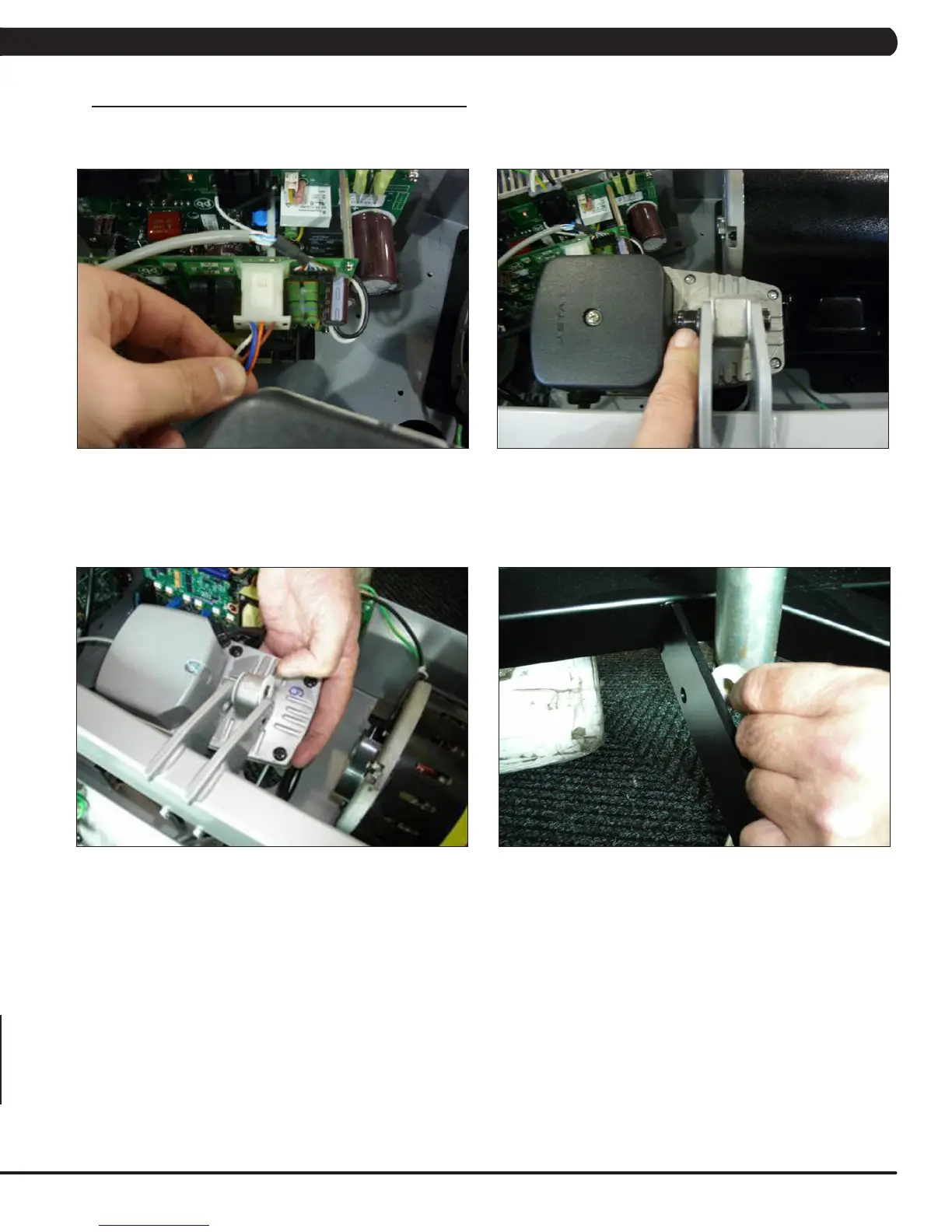

FIGURE D FIGURE E
FIGURE F FIGURE G
4) Disconnect the incline motor power cable from the MCB (Figure D).
5) Disconnect the incline motor from the top mounting bracket (Figure E).
6) Lift the incline motor away from the treadmill (Figure F).
7) Reverse Steps 1-6 to install a new incline motor. NOTE: When installing the new incline motor, make sure to replace the white washers at
the top and bottom (Figure G).
8) Test the treadmill for function as outlined in Section 9.21.
