10.3 ASSEMBLY INSTRUCTIONS - CONTINUED

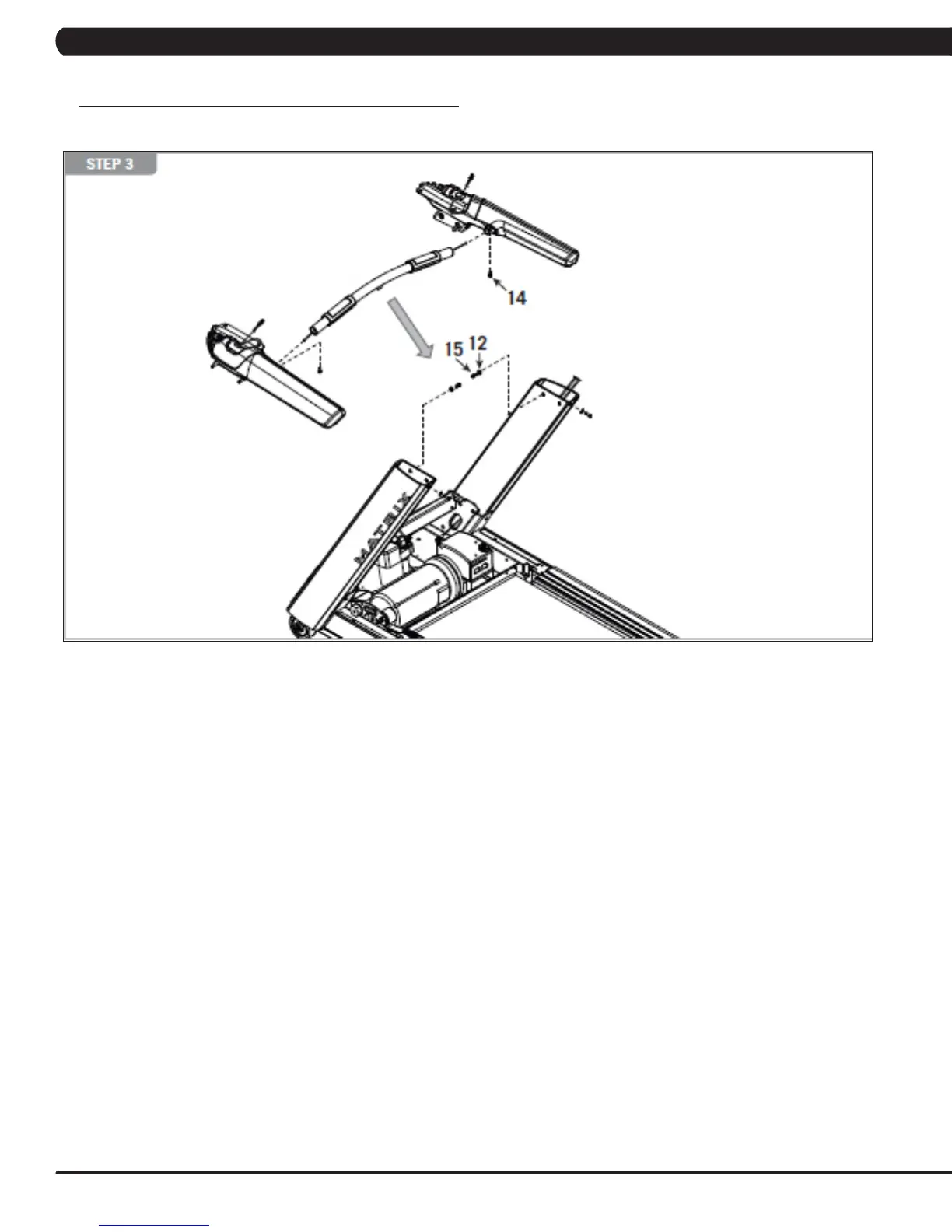

Open Black & White Assembly Bag. Assemble the HR handlebar to the left and right handlebars using item 14 - hex head cap screw. Fasten
the contact HR handlebar assembly to the console masts using item 15 - button head screw and item 12 - flat washer.
Pull the HR wires through the handlebar using the wire pull. Pull the mast wire through the handlebar.
Assembly tip: Look at the labels on the HR wire coming from the HR handlebar to ensure that contact with the left and right handlebars are
assembled in the proper orientation.
CHAPTER 10: TREADMILL SPECIFICATIONS AND ASSEMBLY GUIDE
