45
9.11 INCLINE MOTOR REPLACEMENT - CONTINUED
CHAPTER 9: PART REPLACEMENT GUIDE

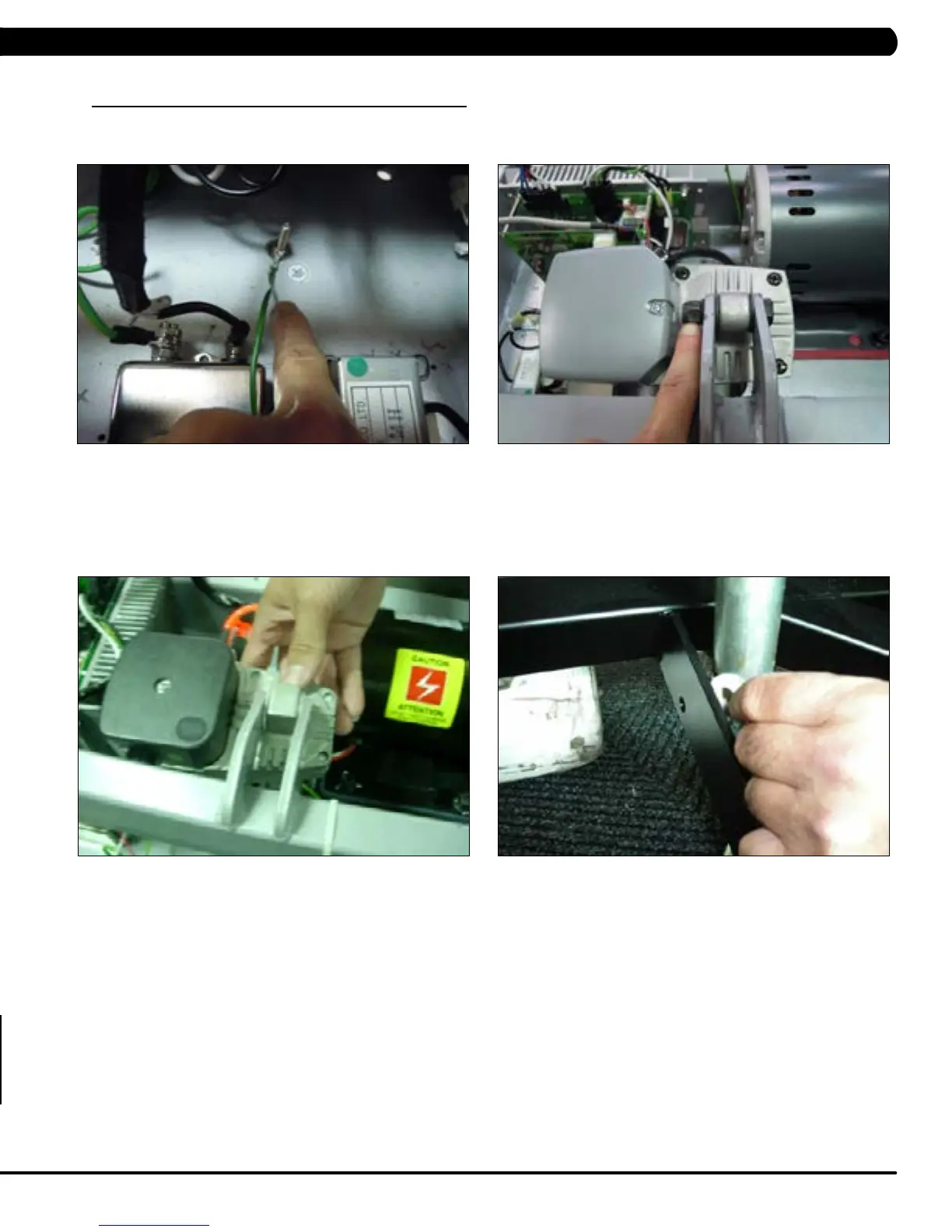

FIGURE E FIGURE F
7) Remove the incline motor cable ground wire from the ground prong in the motor frame (Figure E).
8) Disconnect the incline motor from the top mounting bracket (Figure F).
9) Lift the incline motor away from the treadmill (Figure G).
10) Reverse Steps 1-9 to install a new incline motor. When placing a new incline motor into position, spin the worm screw until the incline
range is as short as possible, then turn 2 revolutions and attach to the treadmill frame. NOTE: When installing a new incline motor, make sure
to replace the white nylon washers at the top and bottom connection points of the incline motor (Figure H).
11) Test the treadmill for function as outlined in Section 9.21.
FIGURE G
FIGURE H
