10.5 PCTV BRACKET INSTALLATION INSTRUCTIONS
CHAPTER 10: TREADMILL SPECIFICATIONS AND ASSEMBLY GUIDE
1) Remove the 2 screws holding the console back cover on and remove the back cover (Figures A & B).
2) Cut the wire tie holding the coax cable, power wire, net wire, and controller wire to the console frame (Figure C).
3) Mount the TV bracket to the frame using 4 socket head screws sent with the bracket kit (Figure D).
4) Remove the blank head phone plate from the front of the console.
5) Install the new headphone jack, plastic, and wiring into the console (Figure E).
6) Plug the headphone wire into the open port on the translator board labeled For Phone (Figure F).

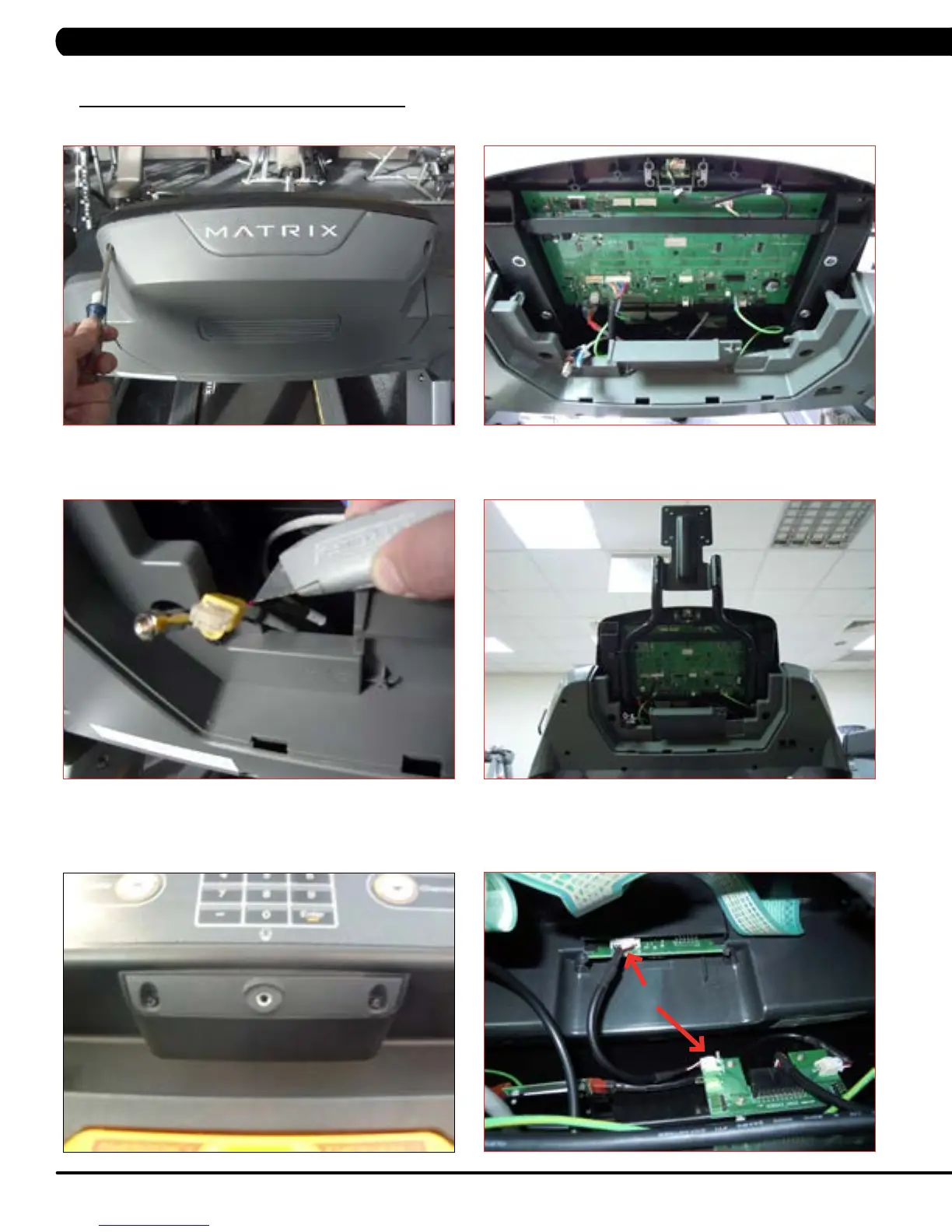

FIGURE A FIGURE B
FIGURE C FIGURE D
FIGURE E FIGURE F
To Next Page
