CHAPTER 9: PART REPLACEMENT GUIDE
9.15 CONSOLE FRAME REPLACEMENT
1) Turn off power to the treadmill and disconnect the power cord.
2) Remove the console as outlined in Section 9.12.
3) Remove the 2 screws on each side holding the console frame to the handlebar frame (Figure A).
4) Remove the 3 screws on each side holding the cup holder to the console frame (Figure B)
5) Remove the 2 cup holders from console frame (Figure C).
6) Remove the console cable wiring from the console frame (Figure D).

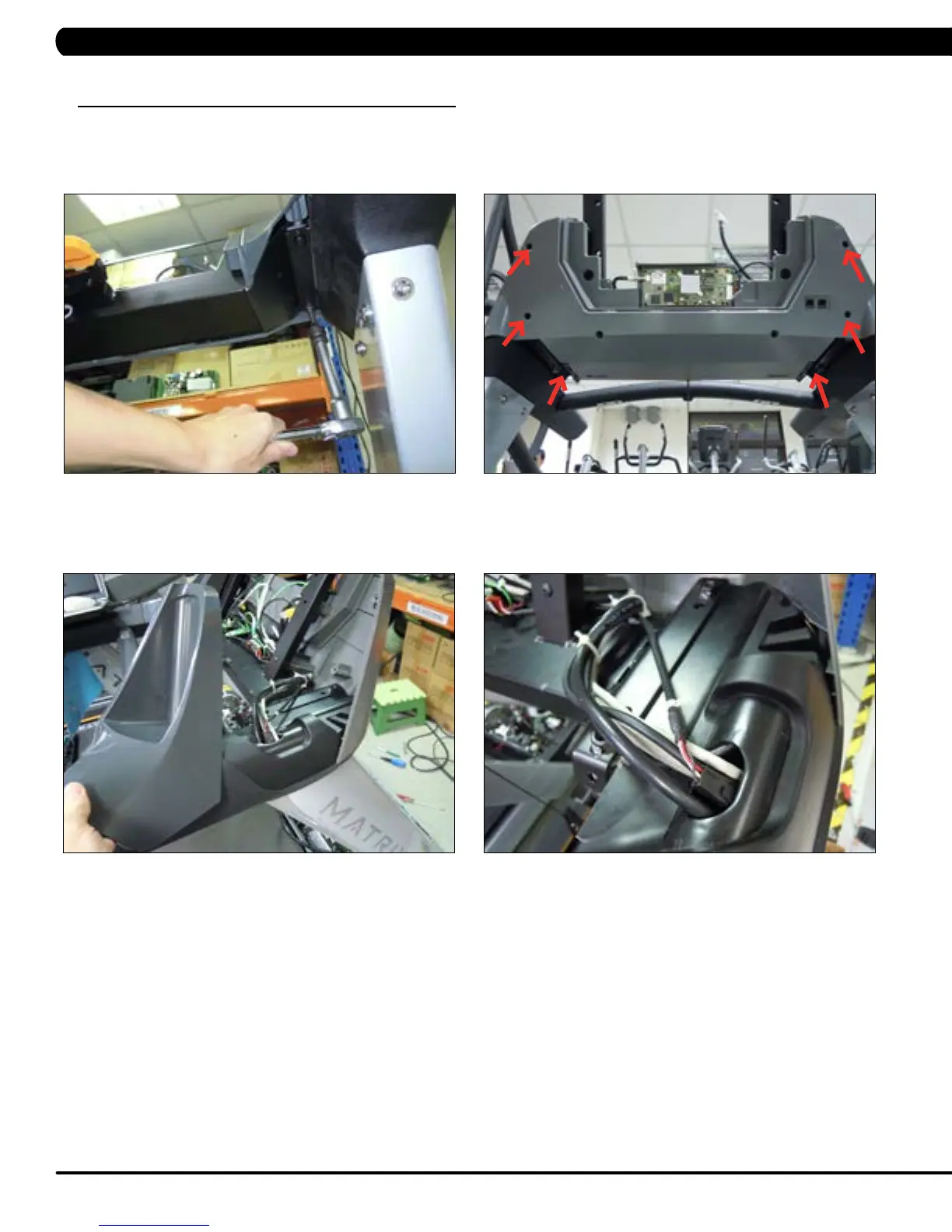

FIGURE A
FIGURE B
FIGURE C
FIGURE D
