Matrix T3X-05 User Manual

51
CHAPTER 9: PART REPLACEMENT GUIDE
9.15 CONSOLE FRAME REPLACEMENT - CONTINUED

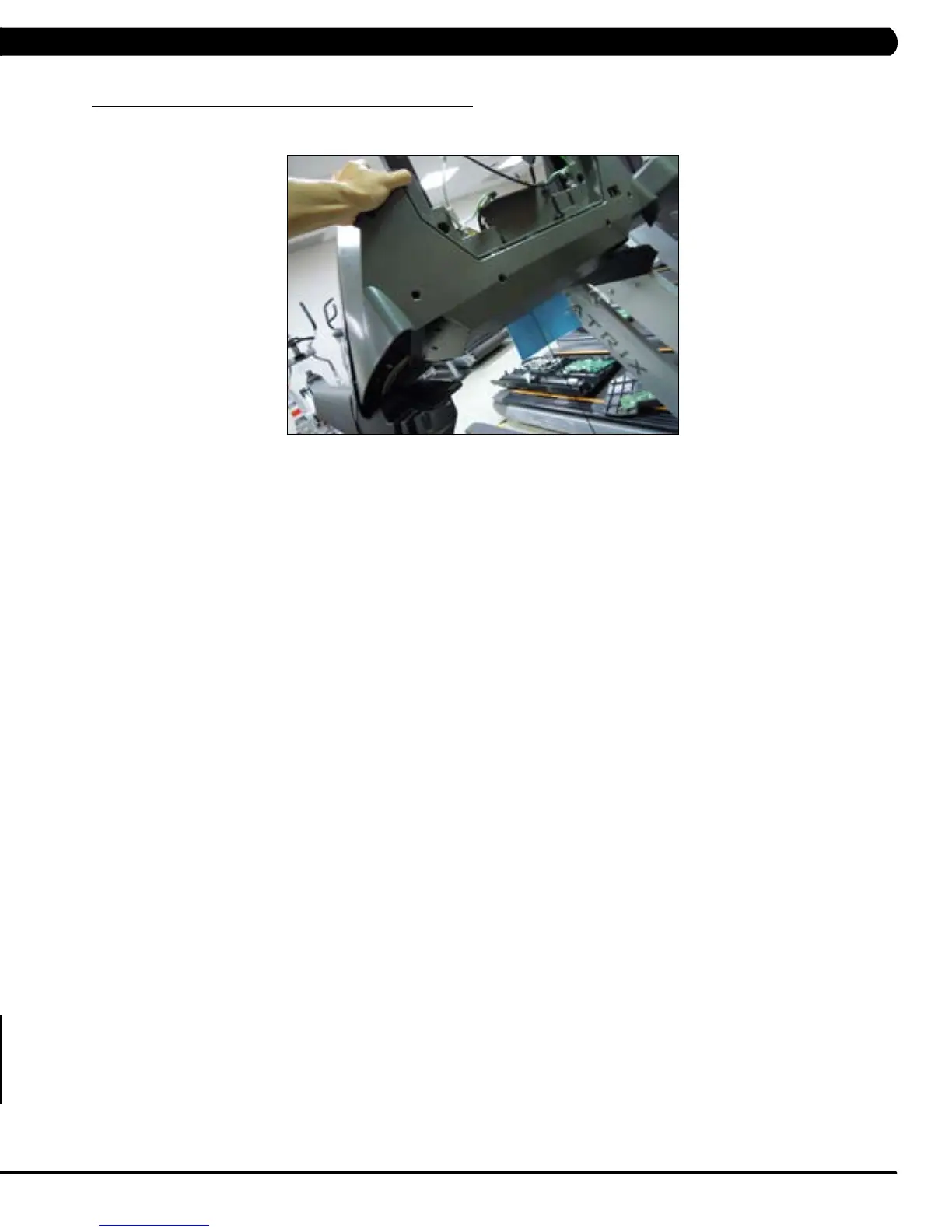

7) Remove the console frame (Figure E).
8) Reverse Steps 1-7 to install a new console frame.
9) Test the treadmill for function as outlined in Section 9.21.
FIGURE E
