Matrix T3X-05 User Manual

52
CHAPTER 9: PART REPLACEMENT GUIDE
9.16 HEART RATE BOARD REPLACEMENT
1) Turn off power to the treadmill and remove the power cord.
2) Remove the console as outlined in Section 9.12.

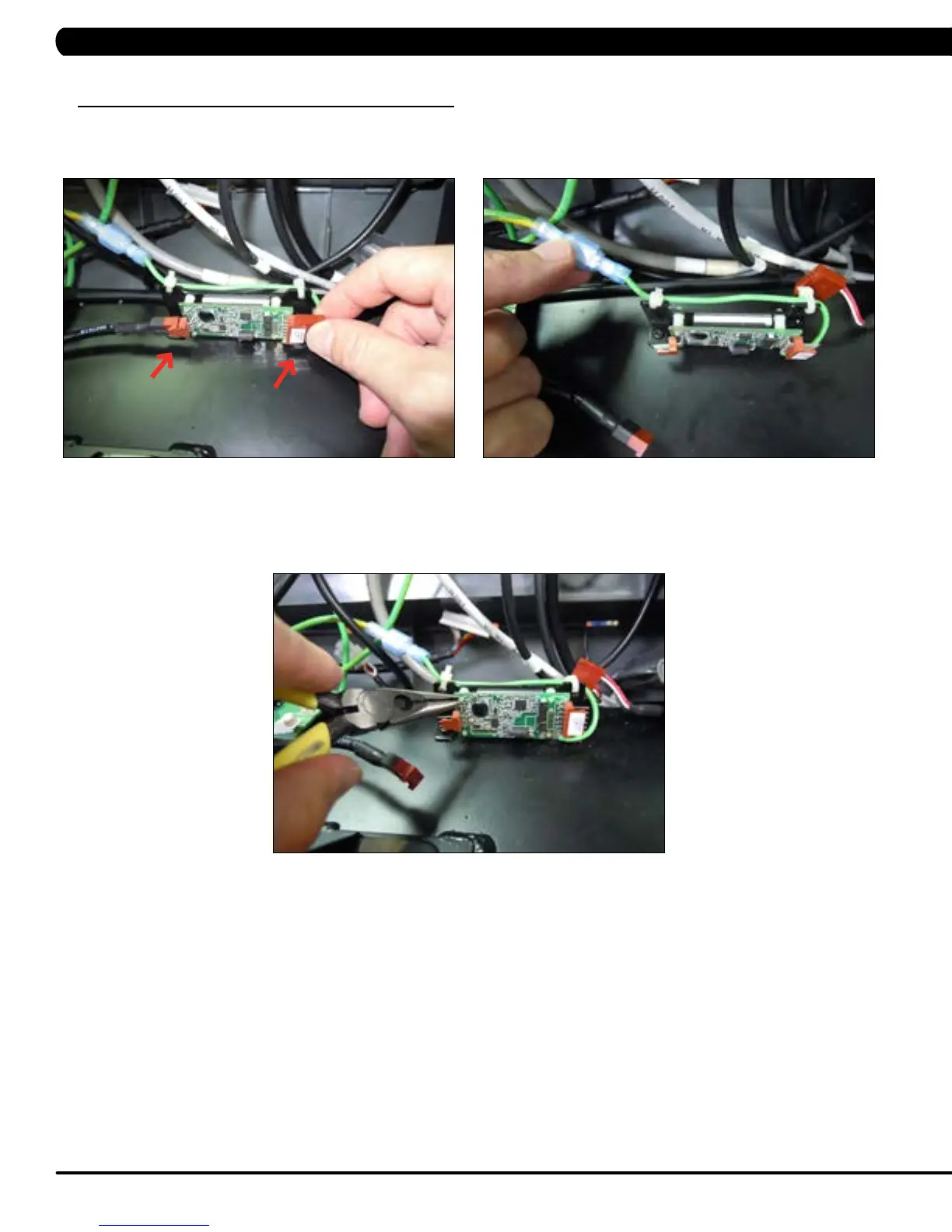

3) Disconnect the wire connections that go to the heart rate board (Figure A & B).
4) Depress the 4 spacer supports holding the heart rate board to the console frame and remove it (Figure C).
5) Reverse Steps 1-4 to install a new heart rate board.
6) Test the treadmill for function as outlined in Section 9.21.
FIGURE A FIGURE B
FIGURE C
