10.4 MYE TV BRACKET INSTALLATION INSTRUCTIONS
CHAPTER 10: TREADMILL SPECIFICATIONS AND ASSEMBLY GUIDE

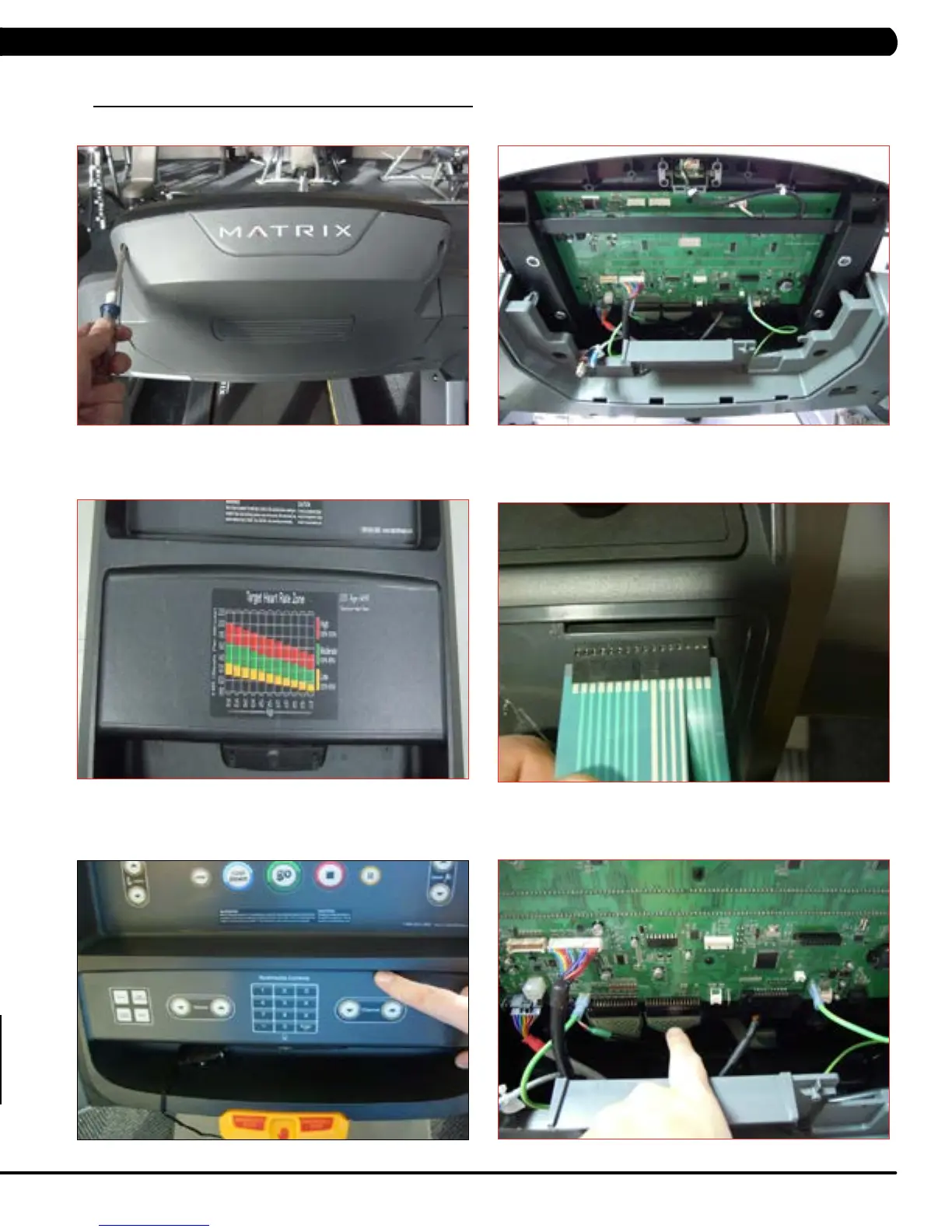

1) Remove the 2 screws holding the console back cover on and remove the back cover (Figures A & B).
2) Use a razor to remove the existing HR overlay on the console (Figure C).
3) Slide the ribbon cable of the entertainment keypad / overlay through the slot in the console (Figure D).
4) Peel the protective film from the back of the entertainment keypad / overlay and apply to the cutout in the console (Figure E).
5) Plug the entertainment keypad into the open pins on the UCB (Figure F).
FIGURE A FIGURE B
FIGURE C FIGURE D
FIGURE E FIGURE F
