10.3 ASSEMBLY INSTRUCTIONS - CONTINUED
CHAPTER 10: TREADMILL SPECIFICATIONS AND ASSEMBLY GUIDE

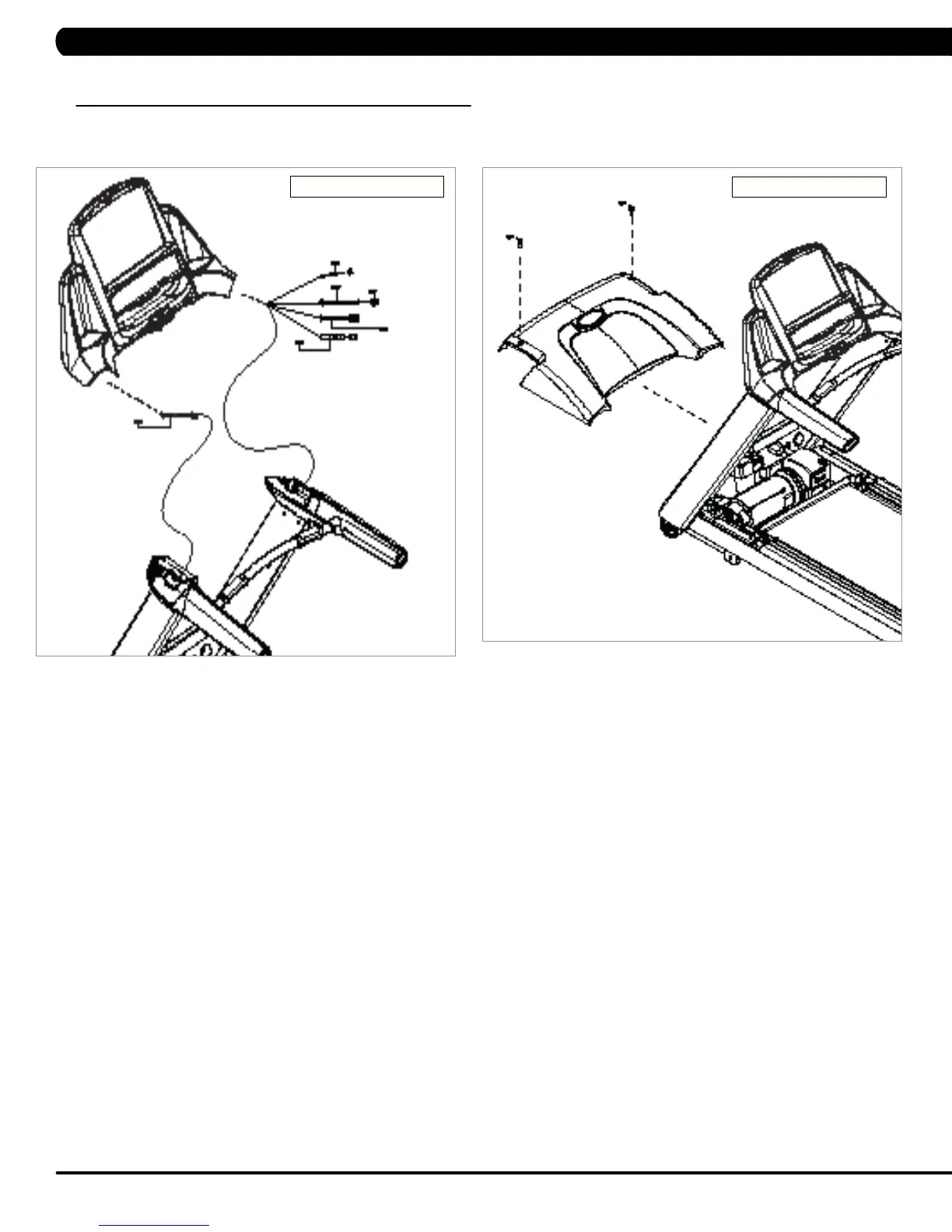

STEP 4 STEP 5
T1XE/T3XE SHOWN
A Open BLACK HARDWARE BAG.
B Assemble the console to the handlebars
using 14-SOCKET HEAD CAP SCREW. Be sure to route the
console cables down the console mast and connect the contact
HR wires. Make all appropriate wire connections within the motor
compartment.
A Re-assemble motor cover to treadmill base using PRE-ATTACHED
SCREWS.
BEFORE THE FIRST USE:
B Lubricate the treadmill deck by following the instructions in the
MAINTENANCE section in the TREADMILL GUIDE.
C Calibrate the treadmill using the auto-calibration feature found in
‘Manager Mode’ or ‘Engineering Mode’. DO NOT stand on the belt
while the auto-calibration sequence is in progress.
