61
10.3 ASSEMBLY INSTRUCTIONS - CONTINUED
CHAPTER 10: TREADMILL SPECIFICATIONS AND ASSEMBLY GUIDE
A Open YELLOW AND WHITE HARDWARE BAGS.

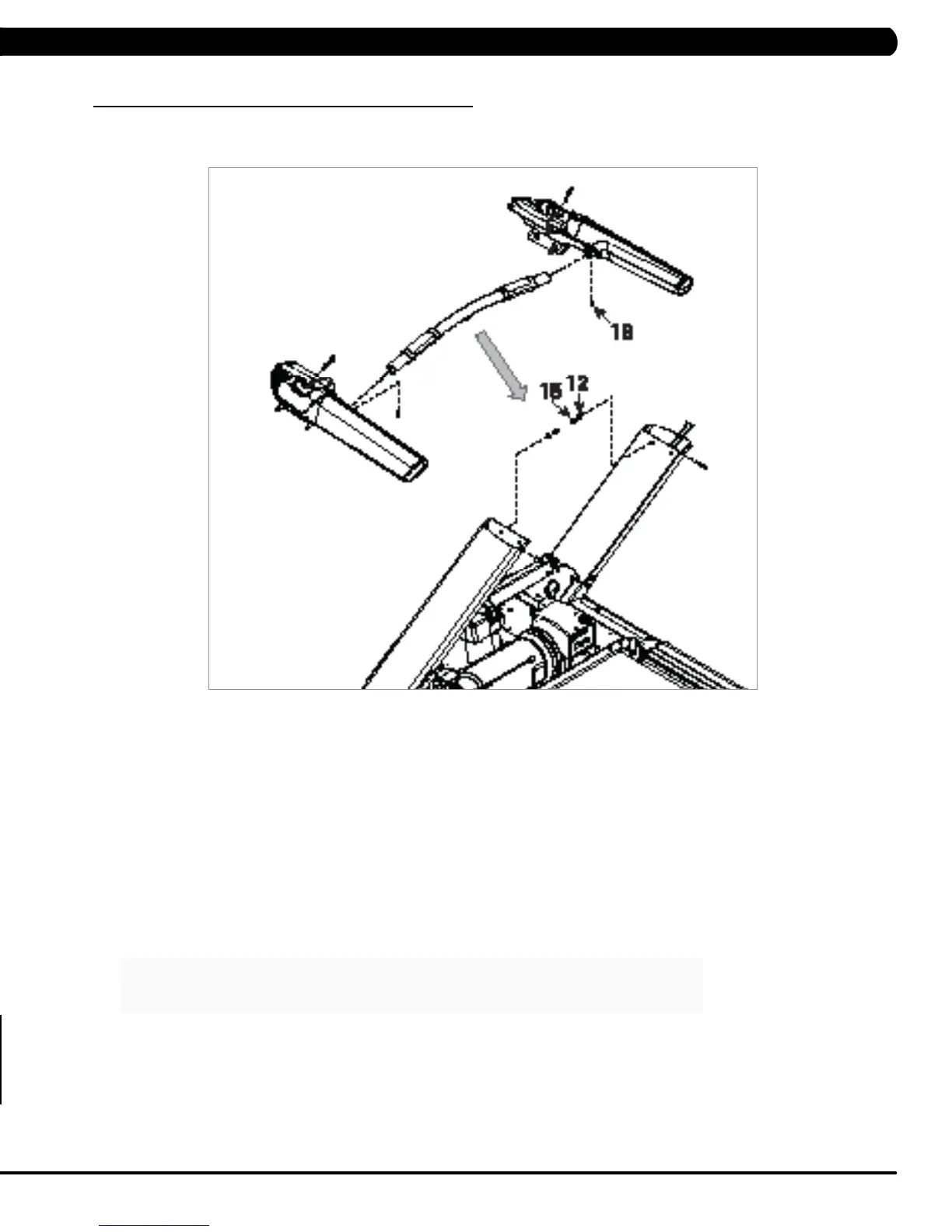

B Assemble the contact HR crossbar to the left and right handlebars using 18-BUTTON HEAD SCREW. Fasten
the contact HR crossbar/handlebar assembly to the console masts using 15-BUTTON HEAD SCREW AND
12-FLAT WASHER.
NOTE: Make sure the arrows on the mast rings are pointing upward towards the console when sliding into
place.
C Pull the HR wires through handlebars using wire pull. Pull mast wire through handlebar.
ASSEMBLY TIP: look at the labels on the HR
wire coming from the contact HR crossbar
to ensure contact with HR crossbar and
left-right handlebars are assembled in the proper orientation.
NOTE: Be careful not to pinch any wires while assembling the right console
mast.
STEP 3
