10.5 PCTV BRACKET INSTALLATION INSTRUCTIONS - CONTINUED
CHAPTER 10: TREADMILL SPECIFICATIONS AND ASSEMBLY GUIDE
NOTE: The wire connections in Steps 12 - 15 should be done prior to installing the TV onto the bracket as the bracket will prevent
some of the connections from being made.
12) Plug the coax cable into the port on the TV (Figure M).
13) Plug the power wire into the port on the TV (Figure N).
14) Plug the controller wire into the port on the TV (Figure O).
15) Plug the net wire into the port on the TV (If using wired internet - Figure P).
16) Plug the dongle into the port on the TV (if using wireless internet - Figure Q).
17) Mount the dongle to the TV plastic using double sided tape (Figure R).

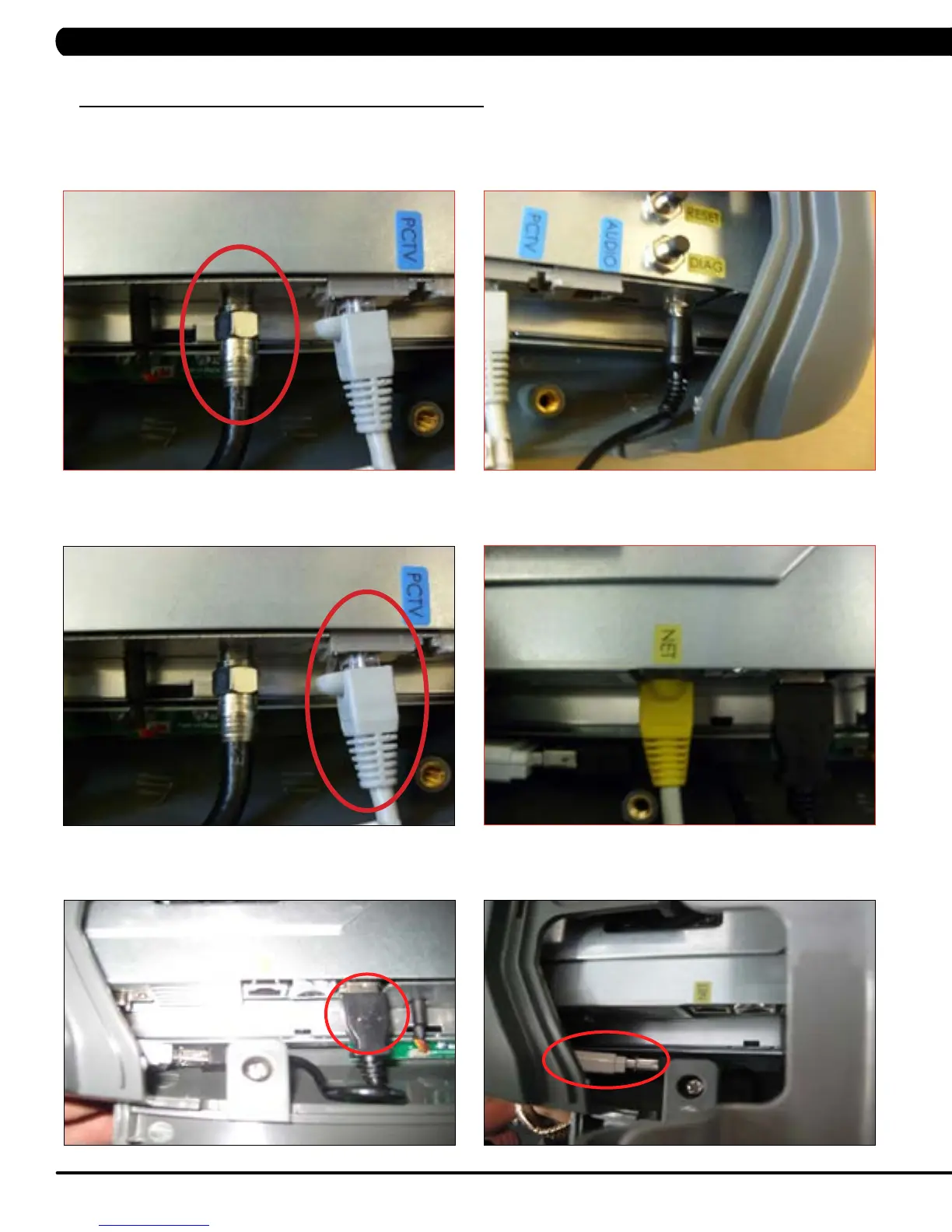

FIGURE M FIGURE N
FIGURE O FIGURE P
FIGURE Q FIGURE R
