9.9 SIDE COVERS REPLACEMENT
1) Remove the pedals as outlined in Section 9.6.
2) Remove the crank as outlined in Section 9.7.
3) Remove the front shroud as outlined in Section 9.8.

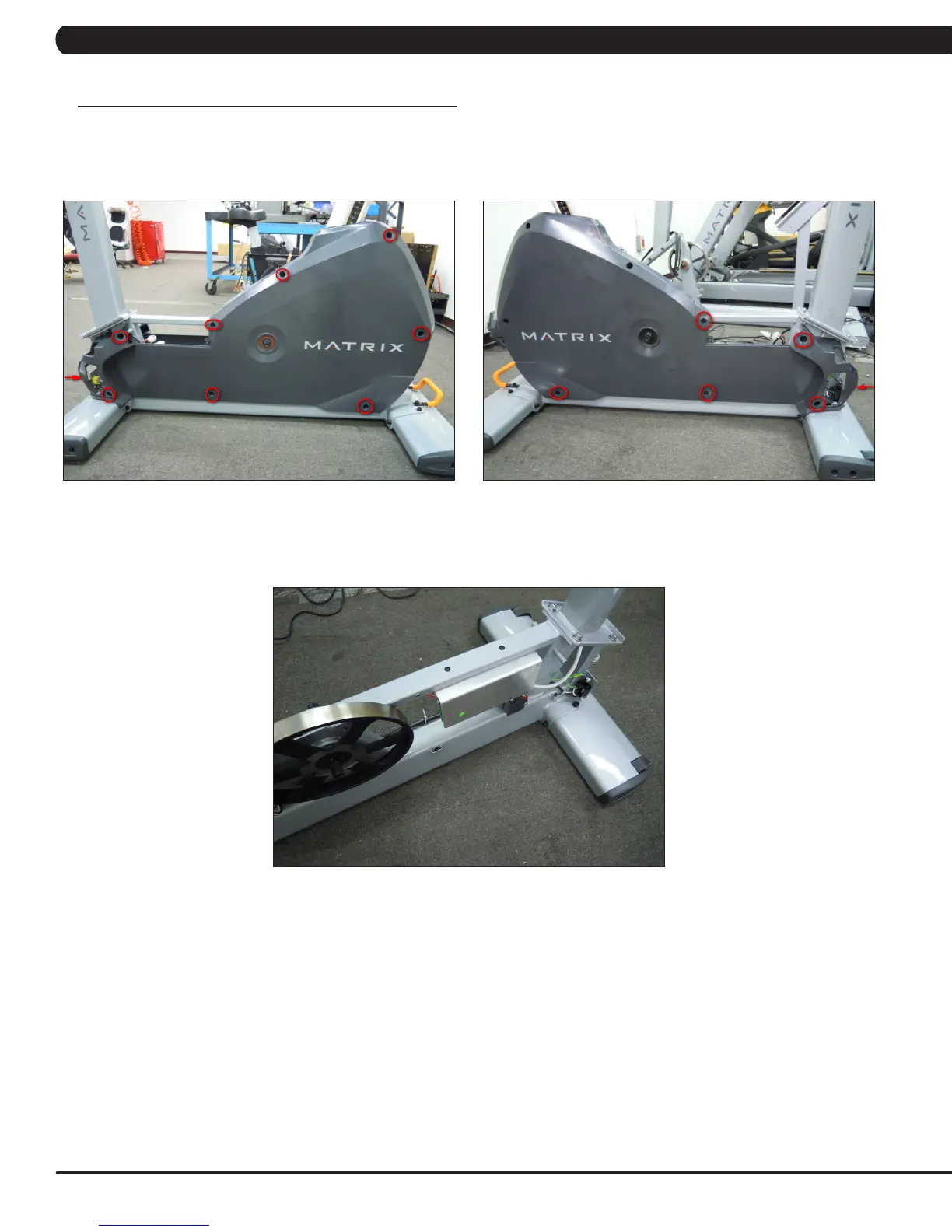

4) Remove the 9 screws holding the left side cover in place (Figure A).
5) Remove the 6 screws holding the right side cover in place (Figure B).
6) Figure C shows both the side covers removed.
7) Reverse Steps 1-5 to install new side covers.
FIGURE A FIGURE B
FIGURE C
