Matrix U3X-05 User Manual

41
9.10 CONSOLE MAST REMOVAL
1) Remove the console as outlined in Section 9.1.
2) Remove the cup holder as outlined in Section 9.2.
3) Remove the handlebars as outlined in Section 9.3.
4) Remove the front shroud as outlined in Section 9.8.

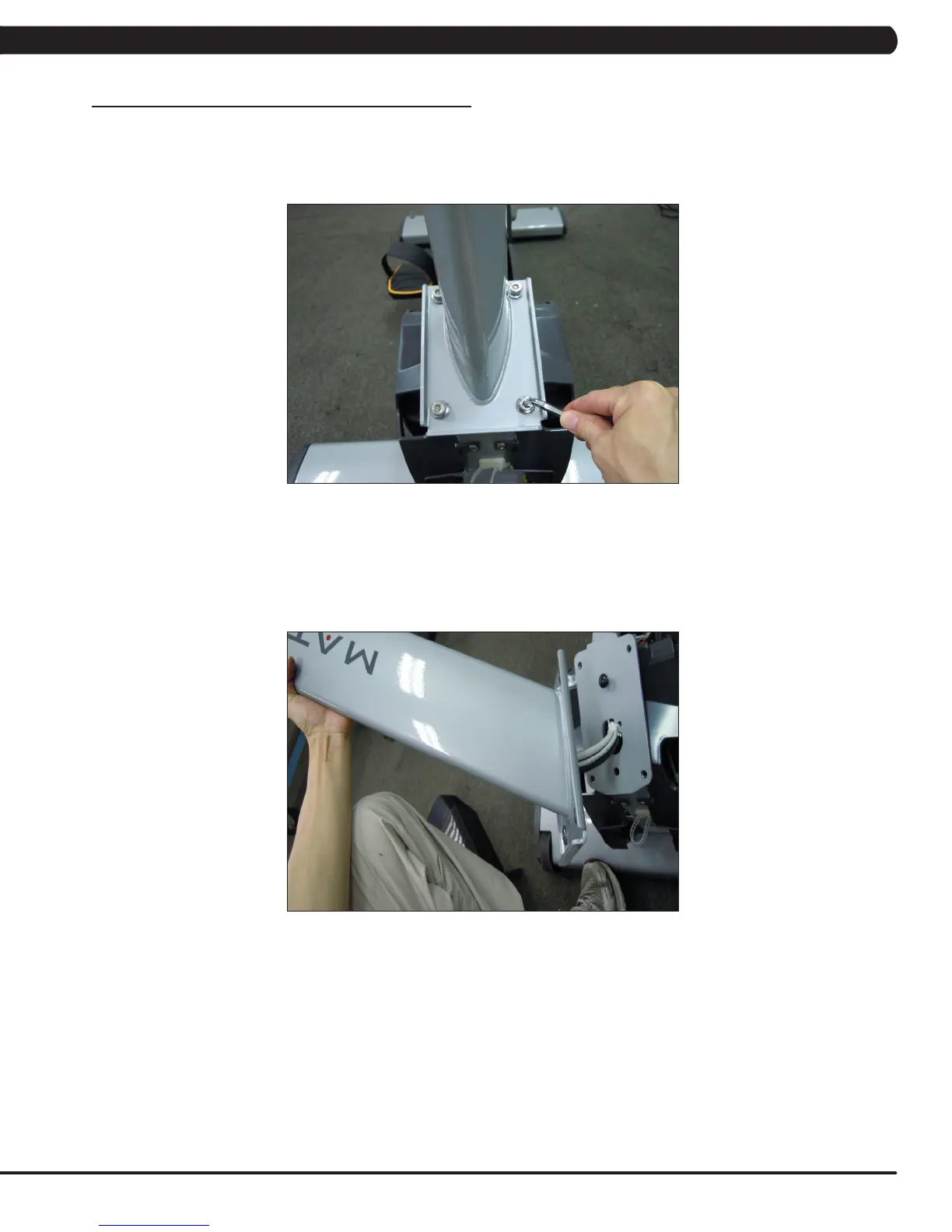

5) Remove the 4 screws holding the console mast to the frame (Figure A).
6) Pull the wires out the bottom of the console mast and remove the mast (Figure B).
7) Reverse Steps 1-6 to install new console mast. NOTE: When installing a new console mast, be sure to pull the console wires up through the
new mast prior to installing the 4 screws into the frame.
8) Test the bike for function as outlined in Section 9.20.
FIGURE B
CHAPTER 9: PART REPLACEMENT GUIDE
FIGURE A
