9.19 DRIVE AXLE SET REPLACEMENT
CHAPTER 9: PART REPLACEMENT GUIDECHAPTER 9: PART REPLACEMENT GUIDE
NOTE: A Matrix special tool is needed to correctly replace a drive axle. Order part # 1000323981 from Matrix CTS at 866-693-4863 ext 3.
1) Turn off the power and disconnect the cord from the machine.
2) Remove the front covers from the machine as outlined in Section 9.8.
3) Remove drive belt as outlined in Sections 9.14.

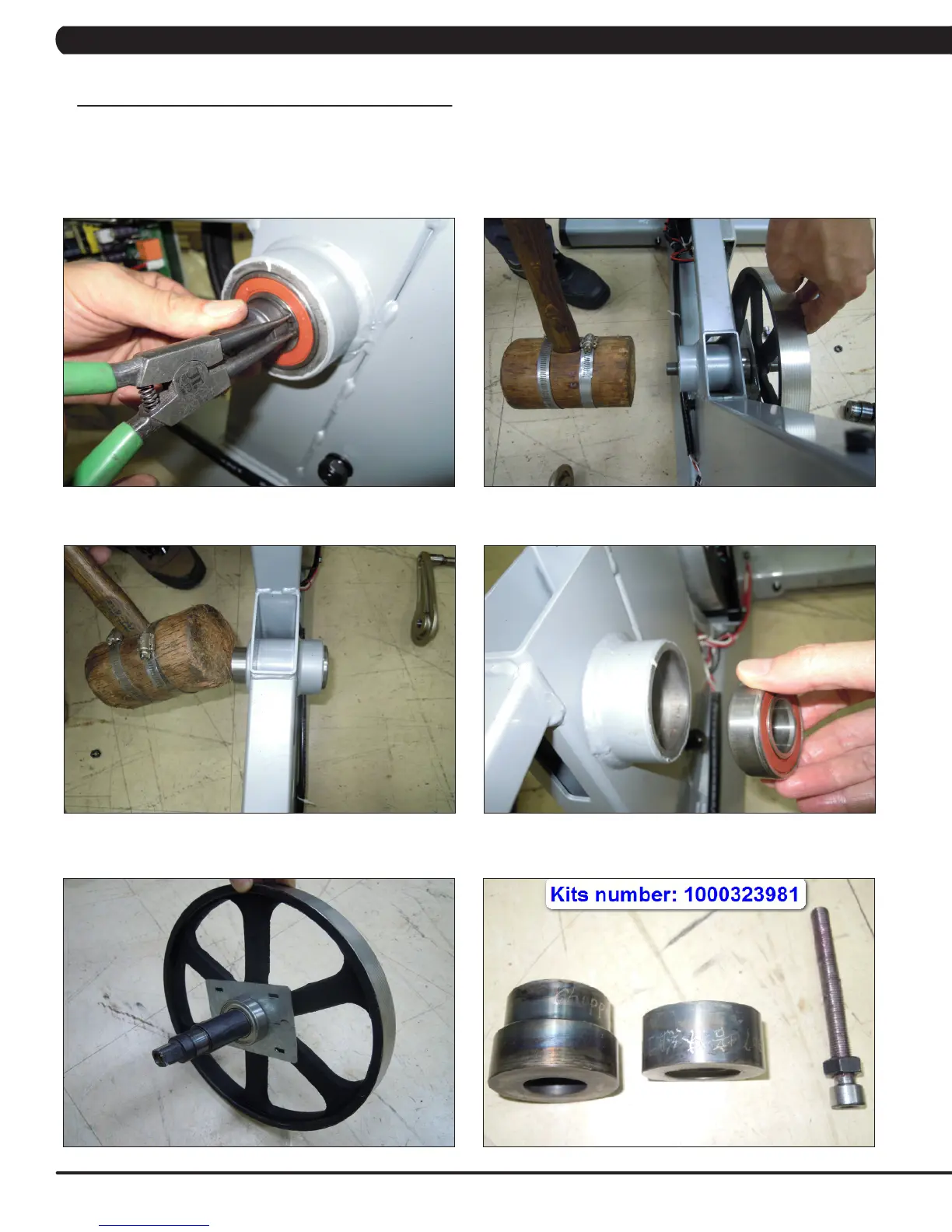

4) On the left side of the frame, remove the retainer clip that holds the drive axle bearings in the frame (Figure A).
5) Use a hammer to hit the screw until the drive axle assembly is loose in the frame, and remove it (Figure B).
6) Install the tool into the hole in the frame and use a rubber mallet to hit the end of the tool until the bearing can be removed from the frame
(Figure C & D).
7) The drive axle should have come with an iron plate installed (Figure E).
8) Assemble the Matrix tool as shown in Figure F.
FIGURE A FIGURE B
FIGURE C FIGURE D
FIGURE E FIGURE F
