Matrix W1X ROWER User Manual

18
1) Remove the right side middle shroud as outlined in Section 6.2.
2) Remove the console as outlined in Section 6.3.
3) Remove the rubber center cover as outlined in Section 6.5.
4) Remove the plastic center cover as outlined in Section 6.6.
5) Remove the screw / nut holding the rope pulley to the frame (Figure A).
6) Remove the rope pulley (Figure B).
7) Reverse Steps 1-6 to install a new rope pulley.
8) Test the rower for function as outlined in Section 6.19.
CHAPTER 6: PART REPLACEMENT GUIDE
6.8 ROPE PULLEY REPLACEMENT

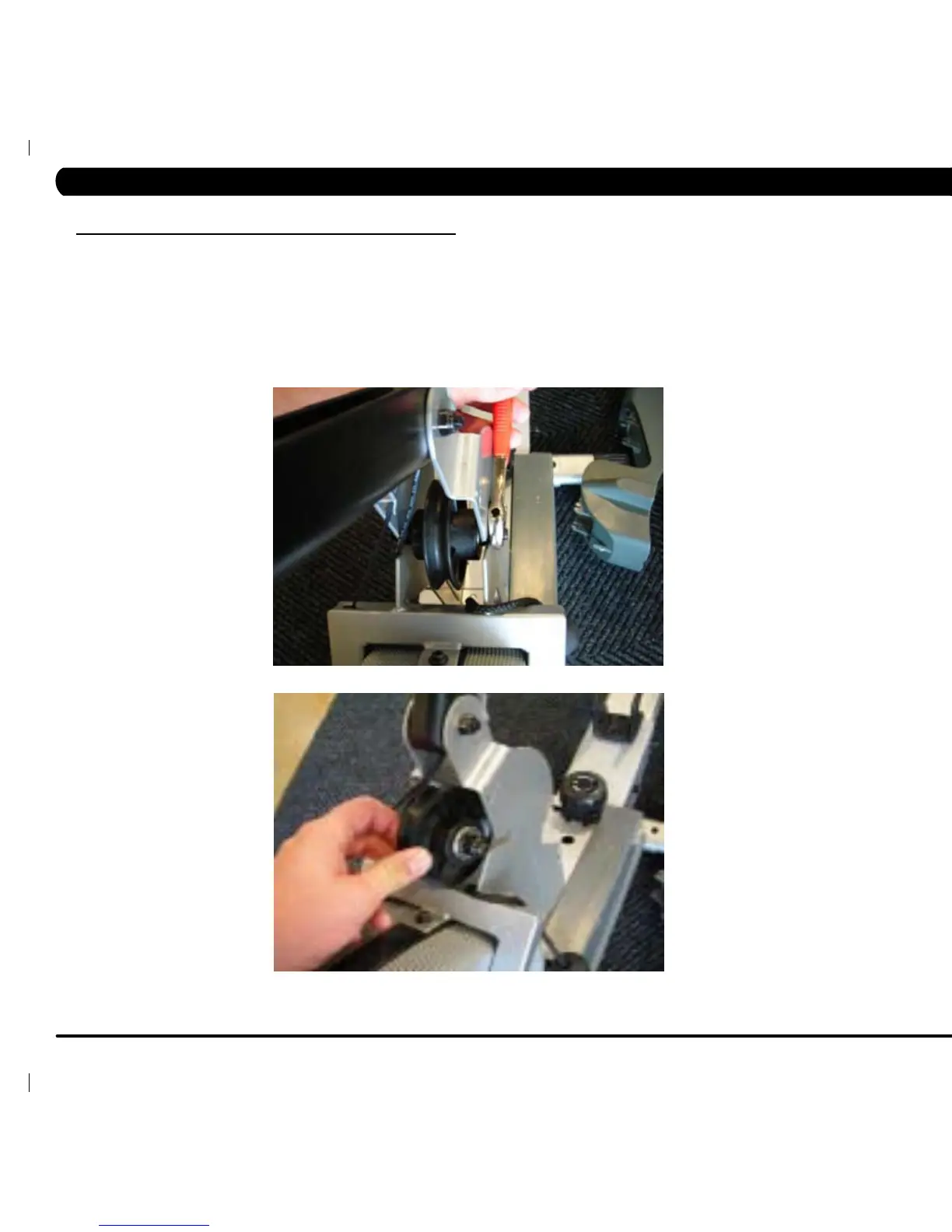

FIGURE A
FIGURE B
